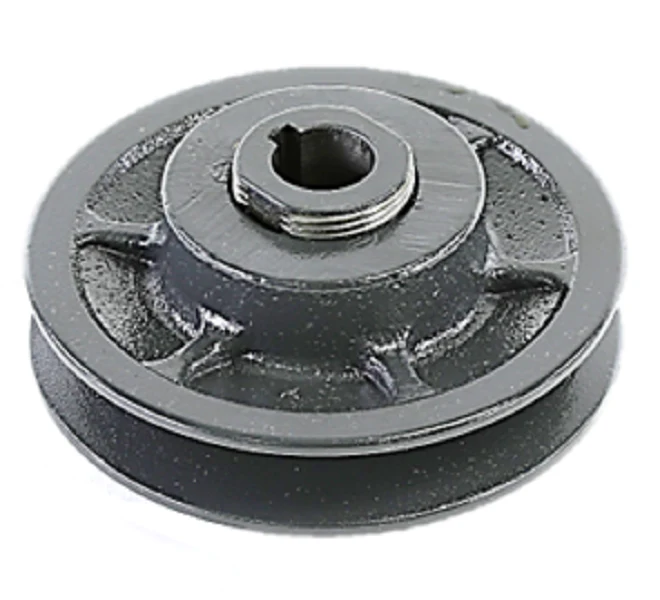

Browning 1VP40X5/8 Sheave
The Browning 1VP40X5/8 is a heavy-duty, single-groove variable pitch sheave designed for precise airflow tuning in commercial HVACR applications. Constructed from high-grade cast iron, this 1VP series pulley features a 5/8" fixed bore and a 3.75" nominal outside diameter. Technicians utilize the 2.3" to 3.8" pitch diameter range to calibrate fan speeds and system static pressure without needing to swap out drive components. This component is engineered for broad compatibility, accepting 3L, 4L, A, AX, 5L, B, and BX belts. The precision-machined threads and locking setscrew ensure a secure fit on the motor shaft, preventing slippage under high-torque starts. Whether you are balancing a makeup air unit or a standard blower assembly, this adjustable motor pulley provides the mechanical reliability required for long-term industrial service. Its rugged construction facilitates consistent heat dissipation and maintains belt alignment across the entire adjustment range.
Key Benefits for Contractors- Optimized Performance: Fine-tune HVAC blower speed to meet specific CFM requirements by adjusting the pitch diameter between 2.3 and 3.8 inches.
- Broad Belt Compatibility: Versatile groove design accommodates multiple belt profiles, including A/B section belts and Cogged AX/BX variants for higher efficiency.
- Durable Construction: The cast iron sheave body offers superior wear resistance and vibration dampening compared to stamped steel alternatives.
- Simplified Installation: The 5/8 inch fixed bore with setscrew allows for immediate mounting on standard NEMA frame motors without the need for additional bushings.
How do I adjust the pitch diameter on the Browning 1VP40?
To adjust the pitch, loosen the locking setscrew and rotate the moving flange. Closing the flanges increases the pitch diameter and fan speed, while opening them decreases the diameter. Always re-tighten the setscrew on the flat portion of the hub before operation.
What belts provide the best grip for this 3.75 OD sheave?
For high-torque applications or where energy efficiency is a priority, AX or BX cogged V-belts are recommended. They offer better flexibility around the 3.75" outside diameter and reduce heat buildup compared to standard wrap-molded belts.
Can this sheave be used for permanent speed settings?
Yes. While the 1VP40X5/8 is adjustable for system balancing, its heavy-duty cast iron build is designed for continuous duty. Once the desired system static pressure is reached, the setscrew locks the setting for permanent operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
