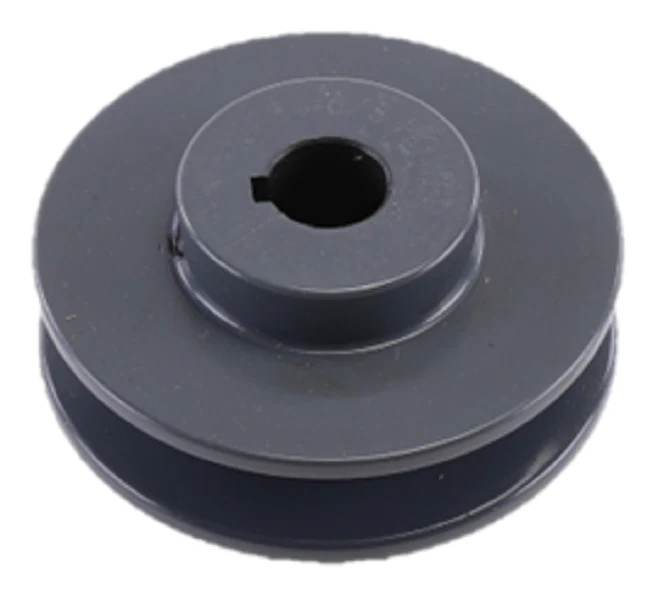

Browning 1VP34X5/8 Sheave
The Browning 1VP34X5/8 Sheave is a professional-grade, variable pitch sheave designed for precise HVAC blower speed adjustment and fan drive optimization. Engineered from high-density cast iron, this 1-groove motor pulley features a 5/8" finished bore with a standard keyway, ensuring a secure fit on FHP (Fractional Horsepower) motor shafts. It provides a versatile adjustable pitch diameter range of 1.7" to 3.3", allowing technicians to fine-tune industrial belt drive systems without the need for multiple fixed pulleys. The threaded flange design facilitates rapid changes in driven speed by simply rotating the sheave's adjustable component, which alters the belt's seating depth. This cast iron V-belt sheave is meticulously balanced to reduce vibration and extend the service life of internal bearings. It is fully compatible with a wide spectrum of belt profiles, including 3L, 4L, A, AX, 5L, B, and BX sections, making it a versatile staple for HVAC mechanical contractors servicing commercial air handlers and ventilation equipment.
Key Benefits:- Precision Speed Control: The variable pitch design allows for exact HVAC fan speed tuning to meet specified CFM requirements.
- Rugged Construction: Durable cast iron provides superior wear resistance and dampens resonance in belt-driven air handlers.
- Universal Belt Compatibility: Engineered to accommodate multiple V-belt cross-sections (3L, 4L, A, 5L, B) for maximum field flexibility.
- Finished Bore Reliability: The 5/8" bore comes with a pre-machined keyway and set screw on the flat for a non-slip motor shaft connection.
- How do I adjust the pitch on this Browning sheave? Loosen the set screw on the adjustable flange and rotate the flange on the threaded barrel to increase or decrease the pitch diameter before re-tightening.
- Can this sheave be used with both A and B section belts? Yes, the 1VP series is specifically designed to handle a variety of widths from 3L through B section belts by adjusting the groove opening to fit the belt profile.
- What is the maximum horsepower rating for this component? For standard HVAC applications, these sheaves are typically utilized in drives ranging up to 5-25 HP depending on the specific drive configuration and belt selection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $60.95
-65%$60.95
$21.33Browning 1VP34X5/8 Sheave
The Browning 1VP34X5/8 Sheave is a professional-grade, variable pitch sheave designed for precise HVAC blower speed adjustment and fan drive optimization. Engineered from high-density cast iron, this 1-groove motor pulley features a 5/8" finished bore with a standard keyway, ensuring a secure fit on FHP (Fractional Horsepower) motor shafts. It provides a versatile adjustable pitch diameter range of 1.7" to 3.3", allowing technicians to fine-tune industrial belt drive systems without the need for multiple fixed pulleys. The threaded flange design facilitates rapid changes in driven speed by simply rotating the sheave's adjustable component, which alters the belt's seating depth. This cast iron V-belt sheave is meticulously balanced to reduce vibration and extend the service life of internal bearings. It is fully compatible with a wide spectrum of belt profiles, including 3L, 4L, A, AX, 5L, B, and BX sections, making it a versatile staple for HVAC mechanical contractors servicing commercial air handlers and ventilation equipment.
Key Benefits:- Precision Speed Control: The variable pitch design allows for exact HVAC fan speed tuning to meet specified CFM requirements.
- Rugged Construction: Durable cast iron provides superior wear resistance and dampens resonance in belt-driven air handlers.
- Universal Belt Compatibility: Engineered to accommodate multiple V-belt cross-sections (3L, 4L, A, 5L, B) for maximum field flexibility.
- Finished Bore Reliability: The 5/8" bore comes with a pre-machined keyway and set screw on the flat for a non-slip motor shaft connection.
- How do I adjust the pitch on this Browning sheave? Loosen the set screw on the adjustable flange and rotate the flange on the threaded barrel to increase or decrease the pitch diameter before re-tightening.
- Can this sheave be used with both A and B section belts? Yes, the 1VP series is specifically designed to handle a variety of widths from 3L through B section belts by adjusting the groove opening to fit the belt profile.
- What is the maximum horsepower rating for this component? For standard HVAC applications, these sheaves are typically utilized in drives ranging up to 5-25 HP depending on the specific drive configuration and belt selection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
