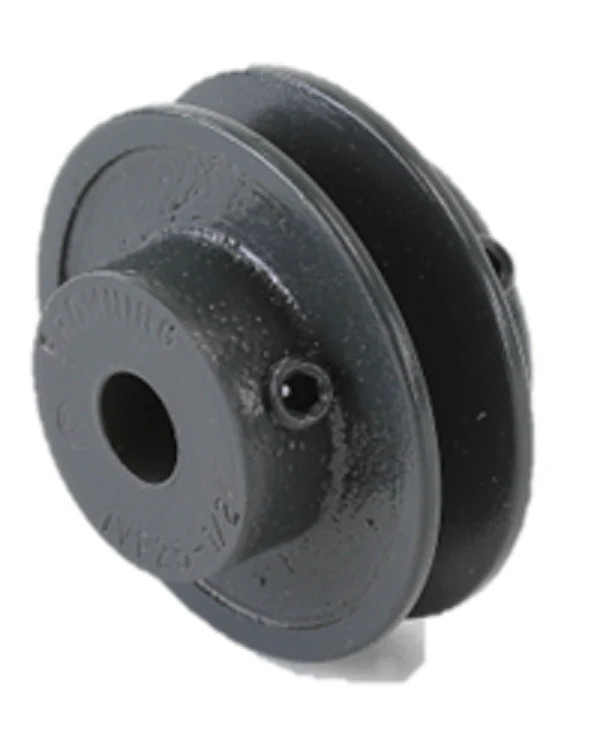

Browning 1VP25X1/2 Sheave
The Browning 1VP25X1/2 Sheave is a rugged, cast iron variable pitch sheave engineered for fractional horsepower (FHP) applications, supporting systems up to 25 HP. This single groove sheave features a 2.50" outside diameter and a 1/2" fixed bore, designed specifically for use with 3L v-belts. With an adjustable pitch range of 1.6" to 2.4", this component allows for precise fan speed adjustment and mechanical fine-tuning of air handling units. Its durable cast iron construction ensures long-term v-belt drive compatibility and reliable performance in demanding HVACR environments. Technicians favor the 1VP series for its threaded angular faced discs, which allow for seamless diameter changes by moving the male and female sections along the threaded barrel. This pulleys and sheaves solution provides the mechanical flexibility required for balancing belt-driven blowers and motors without needing to replace fixed components.
Key Benefits- Precision Speed Control: The variable pitch design allows for fine-tuning of 1.6" to 2.4" pitch diameters to meet exact airflow requirements.
- Heavy-Duty Construction: High-grade cast iron sheave material provides superior wear resistance and vibration dampening compared to lighter alternatives.
- Optimized Compatibility: Specifically bored for 1/2" shafts and profiled for 3L belt section efficiency in light-duty HVAC applications.
- Easy Installation: The fixed bore design ensures a secure fit on standard motor shafts for rapid field replacement.
What belt size works best with the 1VP25X1/2?
This sheave is engineered primarily for 3L v-belts. While some 1VP series sheaves support multiple belt profiles, the 1VP25 is optimized for the 0.38" top width of 3L sections.
Does this sheave include a keyway?
No, 1/2" fixed bore Browning sheaves in this series typically utilize a set screw for attachment and do not feature a standard keyway.
How do I adjust the pitch diameter on this pulley?
Loosen the locking set screw on the movable flange and rotate the threaded disc. Moving the discs closer together increases the pitch diameter and output speed; moving them apart decreases it.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $68.94
-65%$68.94
$24.13Browning 1VP25X1/2 Sheave
