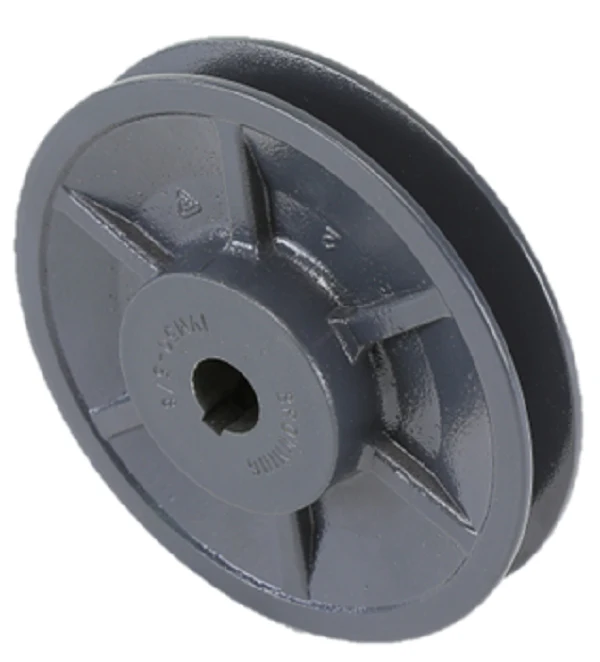

Browning 1VM50X5/8 Sheave
The Browning 1VM50X5/8 Sheave is a heavy-duty, single-groove component engineered for precise drive adjustments in HVAC blower motors and industrial power transmission systems. Constructed from high-quality cast iron, this variable pitch sheave features a 4.75-inch outside diameter and is designed with a 5/8-inch finished bore including a standard keyway. This VM series pulley provides a pitch range of 3.3 to 4.8 inches, allowing technicians to fine-tune fan speeds and CFM output to meet specific system requirements. Its robust design ensures optimal v-belt alignment and reduces vibration in high-demand belt drive applications. This component is compatible with a wide array of v-belt sections, including 3L, 4L, A, AX, 5L, B, and BX belts, offering maximum flexibility for diverse equipment configurations. By utilizing a threaded adjustable flange, contractors can achieve exact performance parameters without the need for multiple fixed-bore replacements, stabilizing static pressure and improving overall system efficiency.
Key Benefits- Enhanced Speed Control: The 3.3-4.8 variable pitch design allows for precise RPM adjustments to optimize airflow in commercial air handlers.
- Durable Cast Iron Build: High-density cast iron construction provides superior wear resistance and thermal dissipation for continuous-duty cycles.
- Broad Belt Compatibility: Versatile single-groove profile fits A and B section v-belts, as well as 3L, 4L, and 5L light-duty belts.
- Secure Shaft Mounting: The 5/8-inch fixed bore with integrated keyway ensures a slip-free connection to the motor shaft under high torque loads.
- Reduced Maintenance Downtime: Engineered for quick pitch diameter modifications using standard setscrew adjustments.
What belt types are compatible with the Browning 1VM50X5/8?
This sheave is designed for maximum versatility, supporting 3L, 4L, A, AX, 5L, B, and BX section v-belts. Ensure your belt tension is recalibrated after any pitch adjustment.
How do I adjust the pitch diameter on this VM series sheave?
Loosen the setscrews on the adjustable flange and rotate the movealle part to the desired pitch. Each full turn typically changes the pitch diameter by approximately 0.16 inches. Always re-tighten setscrews over the flats of the hub to prevent thread damage.
Is the bore size adjustable?
No, this specific model features a 5/8" finished bore. It is designed to fit standard 5/8-inch motor shafts. Always verify your shaft diameter before installation to ensure a proper interference fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $78.52
-65%$78.52
$27.48Browning 1VM50X5/8 Sheave
