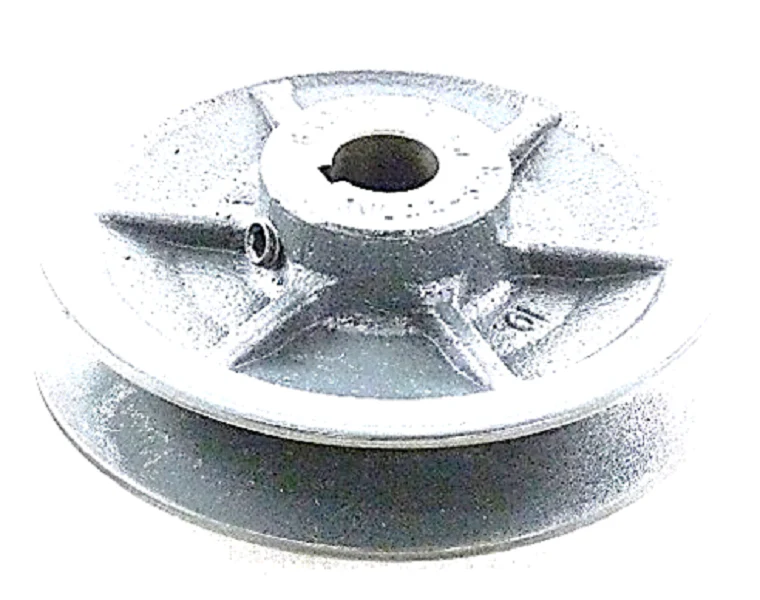

Browning 1VL44X5/8 CLEAR PK Sheave
The Browning 1VL44X5/8 is a heavy-duty, single-groove variable pitch sheave designed for precise airflow and speed adjustments in light-duty HVAC applications. Cast from high-grade ASTM-30 cast iron, this sheave features a 4.15" outside diameter and is engineered for a 5/8" fixed bore mounting. Its versatility is its primary strength, accommodating 3L, 4L, A, AX, 5L, B, and BX belt profiles with an adjustable pitch range of 2.7" to 4.2". This allows technicians to fine-tune fan speeds and motor output without changing drives. The clear zinc phosphate coating provides necessary corrosion resistance for mechanical rooms and rooftop units. Whether you are balancing a commercial air handler or replacing a worn pulley, this cast iron sheave ensures stable power transmission and minimal vibration under load when paired with a standard fixed bore motor shaft.
Technical Key Benefits
- Broad Belt Compatibility: Designed for seamless integration with A, B, and 3L/4L/5L fractional horsepower belts.
- Precision Speed Tuning: Variable pitch adjustment allows for a 1.5" range (2.7" to 4.2"), critical for HVAC system balancing.
- Fixed Bore Design: The 5/8" bore is precision-machined for a secure fit on standard motor shafts, eliminating the need for separate bushings.
- Industrial Durability: Cast iron construction maintains structural integrity and heat dissipation better than stamped steel alternatives.
Common Technical Questions
Which belt drives are compatible with the Browning 1VL44X5/8?
This sheave is engineered for A and B series V-belts as well as 3L, 4L, and 5L light-duty belts, making it a universal choice for varied drive requirements.
How do you adjust the pitch on this variable speed sheave?
The pitch is adjusted by loosening the set screw and rotating the moving flange, which changes the pitch diameter between 2.7" and 4.2" to modify fan RPM.
Is this sheave suitable for high-torque industrial applications?
While durable, the 1VL series is specifically designed for fractional horsepower (FHP) applications typical in HVAC blowers and light commercial machinery.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
