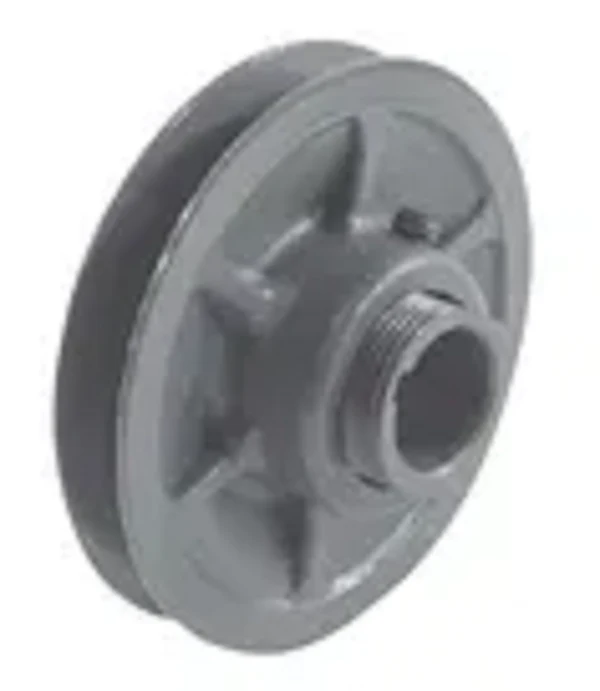

Browning 1VL40X7/8 CLEAR PK Sheave
The Browning 1VL40X7/8 is a heavy-duty single groove variable pitch sheave engineered for precise belt tensioning and speed adjustments in HVACR blower systems and air handling units. Constructed from high-grade cast iron and finished with a clear paint for corrosion resistance, this VL sheave features a 7/8" fixed bore and a 3.75" outside diameter. It provides a versatile variable pitch range of 2.3" to 3.8", allowing technicians to fine-tune CFM output without swapping out physical pulleys. This component is designed for drive compatibility with 3L, 4L, A, AX, 5L, B, and BX cross-section belts. The integrated set screw ensures a secure keyway attachment to the motor shaft, maintaining concentricity under high-torque loads. Whether you are balancing a new system or replacing a worn variable speed pulley, the 1VL40 series provides the mechanical tolerances required to prevent belt slip and premature wear in commercial drive assemblies.
Key Benefits for Technicians
- Universal Belt Compatibility: Designed to accommodate A and B belt profiles, providing flexibility across various motor and fan configurations.
- Precision Speed Tuning: The adjustable pitch diameter allows for field calibration of fan speeds to meet specific airflow requirements.
- Cast Iron Durability: Offers superior heat dissipation and vibration dampening compared to stamped steel alternatives, extending the service life of fractional horsepower drives.
- Standardized Bore Size: The 7/8 inch finished bore with keyway ensures a direct-fit replacement for standard NEMA frame motor shafts.
Common Questions About Variable Pitch Sheaves
How do I adjust the pitch on the Browning 1VL40 series?
Loosen the set screw on the moving flange and rotate the component on the threaded hub to reach the desired pitch diameter, then re-tighten the set screw on the flat of the hub to lock the setting.
Can this sheave be used with cogged belts?
Yes, the 1VL40 is compatible with AX and BX cogged belts, which often provide better efficiency and heat dissipation in tight or high-torque drive applications.
What happens if the pitch is set too wide?
Setting the pitch too wide will lower the effective diameter, reducing the driven speed. Ensure sufficient belt engagement to prevent slippage and excessive groove wear.
