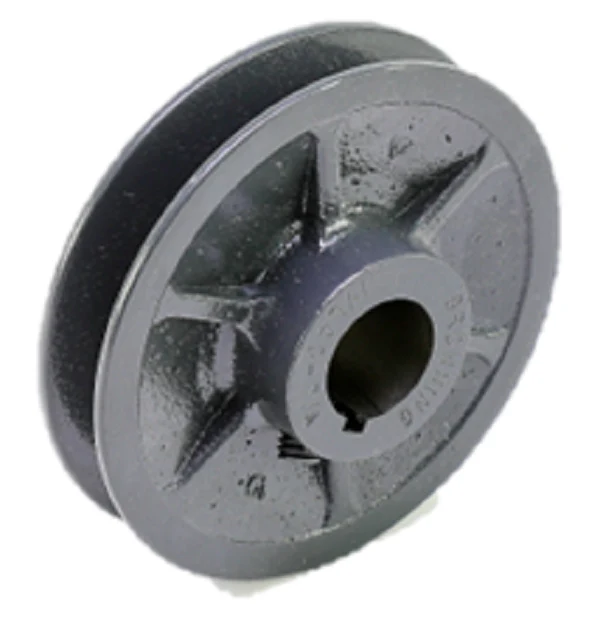

Browning 1VL40X7/8 Sheave
The Browning 1VL40X7/8 Sheave is a precision-engineered variable pitch pulley designed for heavy-duty HVACR ventilation systems and industrial fan drives. Cast from high-grade iron and finished with a corrosion-resistant coating, this single groove sheave features a 7/8" fixed bore and a 3.75" outside diameter. Engineered for versatility, the pitch diameter is fully adjustable from 2.3" to 3.8", allowing technicians to fine-tune blower speeds and system CFM without changing pulleys. This component is compatible with a wide range of drive configurations, specifically accommodating 3L, 4L, A, AX, 5L, B, and BX cross-section belts. The VL series sheave uses a threaded adjustment mechanism to ensure secure positioning under high-torque loads, reducing belt slippage and vibration. For contractors performing preventative maintenance or system balancing, this Browning variable speed sheave provides the mechanical reliability required for critical airflow applications and commercial motor assemblies.
Key Benefits- Universal Compatibility: Supports 3L, 4L, A, AX, 5L, B, and BX belt types for maximum field flexibility.
- Precise Tuning: 2.3" to 3.8" variable pitch range allows for exact blower speed adjustments.
- Durable Construction: High-tensile cast iron build provides superior heat dissipation and wear resistance.
- Stable Integration: 7/8" fixed bore ensures a concentric fit on standard motor shafts, minimizing shaft wobble.
What is the maximum RPM rating for this Browning sheave?
The 1VL40 series is generally rated for standard industrial motor speeds, typically up to 3600 RPM, though dynamics should be verified based on the specific belt velocity and system balance.
How do I adjust the pitch on this variable pulley?
Loosen the set screw on the moveable flange and rotate the flange on the threaded hub to reach the desired pitch diameter, then re-tighten the set screw on the flat of the hub.
Will this sheave work with both cogged and "wrapped" V-belts?
Yes, the groove profile is designed to accept both standard (A, B) and notched/cogged (AX, BX) belts, as well as light-duty FHP belts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $61.73
-65%$61.73
$21.61Browning 1VL40X7/8 Sheave
