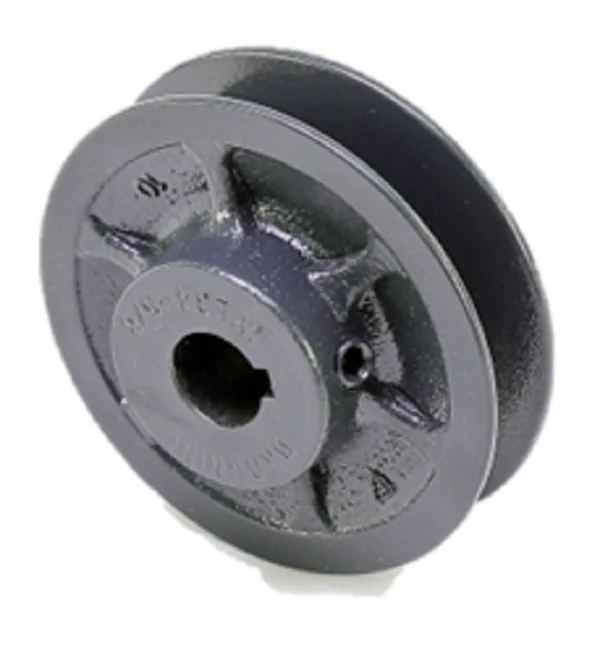

Browning 1VL34X5/8 Sheave
The Browning 1VL34X5/8 Sheave is a high-grade cast iron variable pitch sheave engineered for precise performance in light-duty HVACR and industrial blower applications. As a veteran technician knows, the 1-groove design and fixed 5/8" bore eliminate the need for additional bushings, allowing for a secure, direct-to-shaft installation using the provided knurled setscrews. This VL series sheave features a 3.15" outside diameter and offers a versatile adjustable pitch range of 1.7" to 3.3". This flexibility makes it an essential component for fine-tuning fan speeds and optimizing airflow in air handling units. Designed for maximum compatibility, this variable speed pulley works seamlessly with 3L, 4L, 5L, A, AX, B, and BX V-belts. The heavy-duty cast iron construction ensures exceptional wear resistance and vibration damping, maintaining drive alignment and extending the service life of the entire belt drive system under continuous thermal and mechanical stress.
Key Benefits for Contractors- Versatile Belt Compatibility: Supports a wide range of belt profiles including 3L, 4L, A, AX, 5L, B, and BX belts, reducing the need for extensive truck stock.
- Precision Speed Adjustment: The variable pitch design allows for minute adjustments to the pitch diameter, ensuring the system meets specific CFM requirements.
- Bore Integration: Features a 5/8-inch finished bore with standard keyway for rapid mounting on standard motor shafts without extra adapters.
- Industrial Durability: Machined from high-quality cast iron to provide superior heat dissipation and structural integrity compared to stamped steel alternatives.
What is the maximum horsepower rating for this sheave?
The Browning 1VL34X5/8 is typically utilized in fractional horsepower (FHP) applications, generally supporting drive systems up to 5 HP, depending on the belt section and motor speed.
How many turns are permitted for pitch adjustment?
For A and 4L belts, do not exceed 5 full turns open; for B and 5L belts, the limit is 6 full turns to ensure proper belt seating and prevent premature wear.
Does this sheave require a specific bushing?
No, this is a fixed bore sheave (5/8"), meaning it is designed to slide directly onto the shaft and be secured by the setscrew and keyway.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
