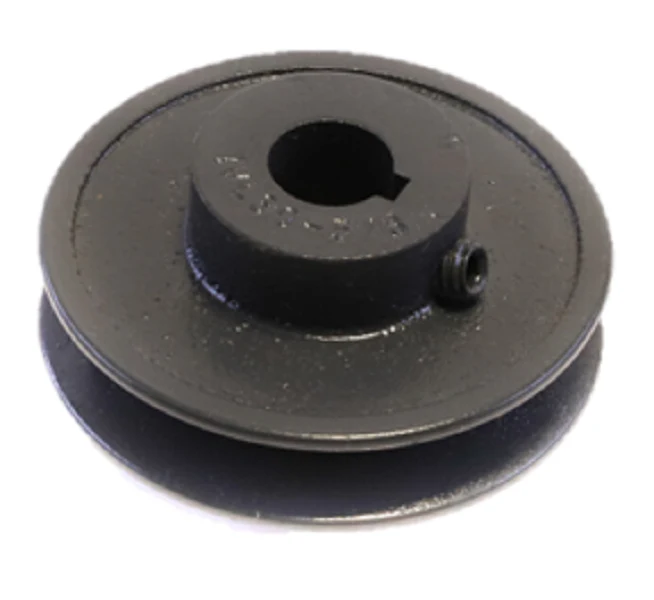

Browning 1VL30X5/8 Sheave
This Browning 1VL30X5/8 Sheave is a rugged, cast iron variable pitch pulley designed for precision air handling and motor drive applications. Featuring a 5/8" fixed bore and a 2.87" outside diameter, this single-groove component allows for fine-tuned speed adjustments by varying the pitch diameter from 1.6" to 2.4". Built for longevity in light-duty HVACR environments, it is specifically engineered for use with 3L cross-section V-belts. The high-grade cast iron construction provides superior vibration dampening and wear resistance compared to stamped steel alternatives. Contractors rely on the Browning VL series for consistent performance in centrifugal fans and small blowers where static pressure balancing requires exact RPM control. The machined threads ensure smooth adjustment, while the integrated setscrew secures the bore to the motor shaft, preventing slippage during high-torque startups. This HVAC replacement sheave is a standard for maintaining system efficiency and airflow requirements in commercial and residential equipment.
Key Benefits- Precision Speed Tuning: The variable pitch design allows for 1.6" to 2.4" adjustments to meet specific CFM requirements.
- Durable Cast Iron: High-tensile strength material offers better heat dissipation and structural integrity than light-duty sheaves.
- Optimized for 3L Belts: Engineered specifically for 3L fhp belts to ensure proper seating and reduced belt wear.
- Fixed Bore Stability: The 5/8" finished bore provides a precise fit on standard NEMA motor shafts for reduced axial runout.
How do I adjust the pitch on this Browning sheave?
Loosen the setscrew on the adjustable flange and rotate the flange on the threaded hub to increase or decrease the pitch diameter, then re-tighten the setscrew on the flat of the hub.
What is the maximum RPM for the 1VL30X5/8?
This sheave is typically rated for speeds up to 4000 RPM, though balance and vibration should be monitored at higher frequencies in fractional horsepower drives.
Can I use a 4L or A-section belt with this pulley?
No, this specific Browning 1VL30 model is designed exclusively for the narrower profile of 3L V-belts; using larger belts will result in improper tracking and premature failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $83.31
-65%$83.31
$29.16Browning 1VL30X5/8 Sheave
This Browning 1VL30X5/8 Sheave is a rugged, cast iron variable pitch pulley designed for precision air handling and motor drive applications. Featuring a 5/8" fixed bore and a 2.87" outside diameter, this single-groove component allows for fine-tuned speed adjustments by varying the pitch diameter from 1.6" to 2.4". Built for longevity in light-duty HVACR environments, it is specifically engineered for use with 3L cross-section V-belts. The high-grade cast iron construction provides superior vibration dampening and wear resistance compared to stamped steel alternatives. Contractors rely on the Browning VL series for consistent performance in centrifugal fans and small blowers where static pressure balancing requires exact RPM control. The machined threads ensure smooth adjustment, while the integrated setscrew secures the bore to the motor shaft, preventing slippage during high-torque startups. This HVAC replacement sheave is a standard for maintaining system efficiency and airflow requirements in commercial and residential equipment.
Key Benefits- Precision Speed Tuning: The variable pitch design allows for 1.6" to 2.4" adjustments to meet specific CFM requirements.
- Durable Cast Iron: High-tensile strength material offers better heat dissipation and structural integrity than light-duty sheaves.
- Optimized for 3L Belts: Engineered specifically for 3L fhp belts to ensure proper seating and reduced belt wear.
- Fixed Bore Stability: The 5/8" finished bore provides a precise fit on standard NEMA motor shafts for reduced axial runout.
How do I adjust the pitch on this Browning sheave?
Loosen the setscrew on the adjustable flange and rotate the flange on the threaded hub to increase or decrease the pitch diameter, then re-tighten the setscrew on the flat of the hub.
What is the maximum RPM for the 1VL30X5/8?
This sheave is typically rated for speeds up to 4000 RPM, though balance and vibration should be monitored at higher frequencies in fractional horsepower drives.
Can I use a 4L or A-section belt with this pulley?
No, this specific Browning 1VL30 model is designed exclusively for the narrower profile of 3L V-belts; using larger belts will result in improper tracking and premature failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
