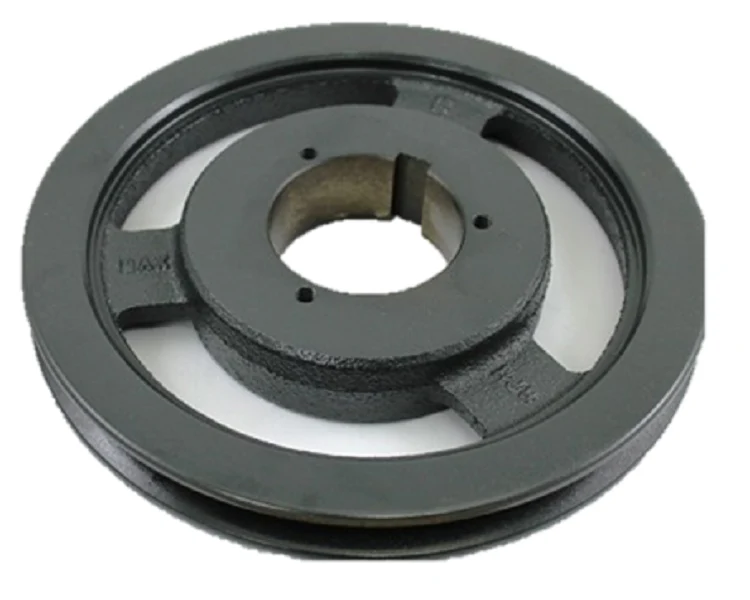

Browning 1B5V90 Sheave
The Browning 1B5V90 Sheave is a high-performance, single-groove B5V Gripbelt Sheave engineered for demanding HVACR and industrial drive systems. Constructed from high-grade cast iron using CAD and Finite Element Analysis for optimized material distribution, this sheave features a 9.28" outside diameter designed for heavy-duty power transmission. Its unique combination groove design allows a single sheave to accommodate a wide range of belt sections, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This versatility significantly reduces inventory requirements for contractors while providing precise pitch diameters for varying horsepower needs.
Designed for use with B series split taper bushings, this sheave incorporates the industry-leading Browning split taper bushing system. This provides a true key-to-key drive to both the shaft and the hub, ensuring maximum concentricity and reduced vibration in high-torque applications. Whether you are servicing industrial fans, blowers, or pumps, the 1B5V90 delivers the reliability required for continuous-duty cycles. Its robust mounting system and precision-machined grooves prevent premature belt wear and ensure synchronous performance across the drive assembly.
Key Benefits- Universal Compatibility: The combination groove accepts multiple belt profiles (A, B, 5V), simplifying field replacements.
- Enhanced Stability: Utilizes B series bushings for a secure, balanced fit that eliminates shaft slippage.
- Durability: Rugged cast iron construction resists wear in harsh mechanical room environments.
- Optimized Performance: Advanced casting design reduces weight without compromising structural integrity or load capacity.
What belts are compatible with the 1B5V90 sheave?
This sheave is specifically designed to run 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections effectively within its single groove.
Which bushing is required for installation?
The 1B5V90 requires a B series split taper bushing, which must be sized to match your specific motor or fan shaft diameter.
Can this sheave be used in high-horsepower HVAC applications?
Yes, the B5V series is built to cover a broad range of horsepower requirements, making it ideal for large-scale air handlers and industrial pumping systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $161.61
-65%$161.61
$56.56Browning 1B5V90 Sheave
