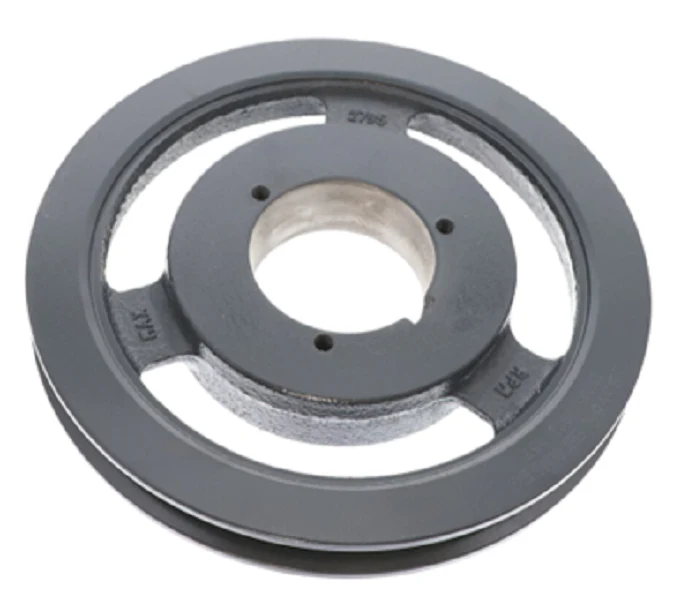

Browning 1B5V86 Sheave
The Browning 1B5V86 Sheave is a precision-engineered single groove B5V gripbelt sheave designed for high-torque power transmission in industrial HVACR systems. Featuring an 8.88" outside diameter, this component is balanced to minimize vibration and extend bearing life in heavy-duty air handling units. It is specifically engineered to interface with B series bushings, ensuring a secure, concentric fit on the shaft. This versatile sheave is compatible with a wide array of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, allowing for significant flexibility when matching drive ratios. The cast iron construction provides the durability required for V-belt drive replacement in demanding environments, maintaining pitch diameter integrity under heavy radial loads. For contractors performing mechanical maintenance, the 1B5V86 offers a reliable solution for optimizing fan and motor speeds while ensuring maximum energy efficiency within the drive package.
Key Benefits
- Broad Belt Compatibility: Supports B5V, A, B, and 5V cross-sections, reducing the need for multiple inventory variations.
- Precision Machining: Ensures uniform weight distribution to prevent oscillation and premature wear on HVAC motor shafts.
- High-Strength Build: Engineered from high-grade gray cast iron to resist grooving and thermal deformation during continuous duty cycles.
- B Series Bushing Interface: Facilitates easy installation and removal with a reliable grip that prevents slippage on the drive assembly.
Common Questions
What is the pitch diameter for the 1B5V86?
The pitch diameter varies by belt type; for 5V belts, the effective diameter is 8.80", while B-section belts typically operate at an 8.6" pitch diameter.
Does this sheave require a specific bushing?
Yes, the 1B5V86 is designed exclusively for use with B series split-taper bushings, which must be sized to your specific motor or fan shaft diameter.
Can I use this for high-speed blower applications?
This sheave is rated for standard industrial speeds; however, always verify that the maximum RPM of your drive does not exceed the safe rim speed limit for cast iron sheaves.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
