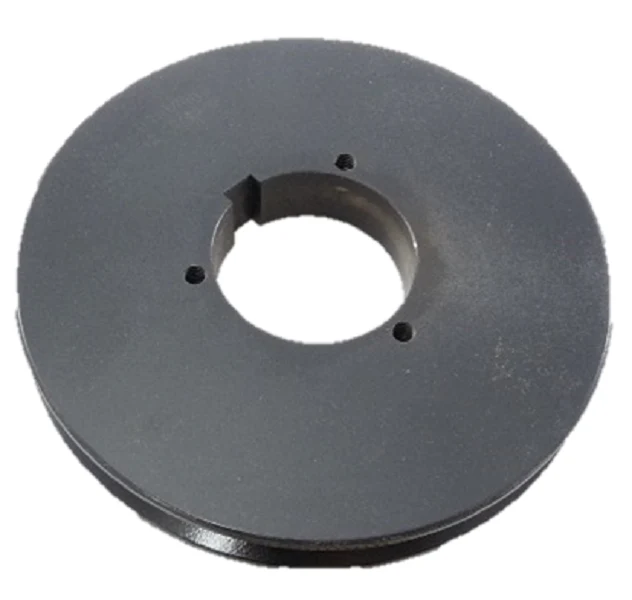

Browning 1B5V74 Sheave
The Browning 1B5V74 is a precision-machined single groove B5V Gripbelt sheave designed for industrial power transmission systems requiring maximum torque efficiency. Engineered for versatility, this sheave features a 7.68-inch outside diameter and is designed to work exclusively with B series bushings. It supports a wide range of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, allowing technicians to maintain standardized inventory while servicing diverse air handlers and pump sets. The cast iron construction provides the rigidity necessary to minimize vibration and prevent premature belt wear in high-static pressure applications. By utilizing the 1B5V74 sheave, contractors ensure a secure fit on the shaft, reducing the risk of slippage or bore damage common in lesser-grade pulleys. This component is essential for HVACR systems where precise pitch diameters are required to maintain specified CFM and system performance.
Key Benefits- Multi-Belt Compatibility: Engineered to accept eight different belt profiles, providing maximum flexibility for field replacements.
- High-Grade Cast Iron: Provides superior heat dissipation and structural integrity under heavy radial loads.
- B Bushing System: Utilizes the reliable B series split taper bushing for a secure, concentric fit on various shaft diameters.
- Precision Balancing: Reduces harmonic distortion and mechanical stress on motor bearings.
What is the pitch diameter for an A-belt on the 1B5V74?
When utilizing an A-belt, the datum diameter is approximately 7.0 inches, though technicians should verify specific drive ratios based on the 7.4-inch 5V pitch diameter.
Can this sheave be used with a 5VX cogged belt?
Yes, the B5V sheave profile is specifically optimized for 5VX narrow cogged belts, which allow for higher horsepower ratings and smaller pulley diameters.
Does the 1B5V74 include the bushing?
No, this unit is the sheave only. You must specify the required bore size and purchase a B series bushing separately for installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $155.18
-65%$155.18
$54.31Browning 1B5V74 Sheave
The Browning 1B5V74 is a precision-machined single groove B5V Gripbelt sheave designed for industrial power transmission systems requiring maximum torque efficiency. Engineered for versatility, this sheave features a 7.68-inch outside diameter and is designed to work exclusively with B series bushings. It supports a wide range of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, allowing technicians to maintain standardized inventory while servicing diverse air handlers and pump sets. The cast iron construction provides the rigidity necessary to minimize vibration and prevent premature belt wear in high-static pressure applications. By utilizing the 1B5V74 sheave, contractors ensure a secure fit on the shaft, reducing the risk of slippage or bore damage common in lesser-grade pulleys. This component is essential for HVACR systems where precise pitch diameters are required to maintain specified CFM and system performance.
Key Benefits- Multi-Belt Compatibility: Engineered to accept eight different belt profiles, providing maximum flexibility for field replacements.
- High-Grade Cast Iron: Provides superior heat dissipation and structural integrity under heavy radial loads.
- B Bushing System: Utilizes the reliable B series split taper bushing for a secure, concentric fit on various shaft diameters.
- Precision Balancing: Reduces harmonic distortion and mechanical stress on motor bearings.
What is the pitch diameter for an A-belt on the 1B5V74?
When utilizing an A-belt, the datum diameter is approximately 7.0 inches, though technicians should verify specific drive ratios based on the 7.4-inch 5V pitch diameter.
Can this sheave be used with a 5VX cogged belt?
Yes, the B5V sheave profile is specifically optimized for 5VX narrow cogged belts, which allow for higher horsepower ratings and smaller pulley diameters.
Does the 1B5V74 include the bushing?
No, this unit is the sheave only. You must specify the required bore size and purchase a B series bushing separately for installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
