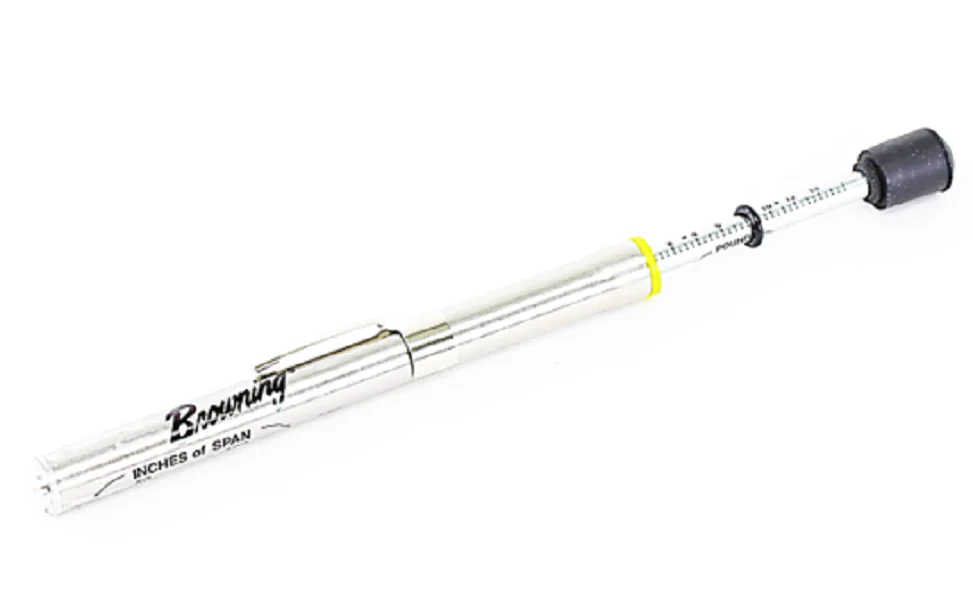

Browning 1302546 Belt Tension Checker
The Browning 1302546 Belt Tension Checker is a critical diagnostic tool designed for HVACR technicians and industrial maintenance professionals to ensure optimal power transmission. This spring-loaded belt tension gauge provides a reliable method for measuring deflection force, allowing you to verify that V-belt drives—including 3L, 4L, 5L, A, B, C, D, 3V, 5V, and 8V profiles—are tensioned to exact manufacturer specifications. Improper tension is the leading cause of premature sheave wear and bearing failure; using this V-belt tensioning tool prevents energy loss and extends the service life of blowers, fans, and compressors.
Constructed with a durable calibrated spring mechanism, the 1302546 is adjustable for belt spans ranging from 10 to 170 inches and can measure up to 35 lbs of force. To operate, simply set the large O-ring to the measured span length and the small O-ring to zero. By applying perpendicular pressure until the large O-ring aligns with a straightedge or adjacent belt, the small O-ring provides a precise force reading. This analog tool is essential for maintaining high-efficiency systems where belt slippage or over-tensioning can lead to costly downtime.
Key Benefits:- Universal Compatibility: Validates tension for a wide array of drive profiles including classical V-belts and narrow wedge belts.
- Enhanced Component Longevity: Prevents excessive radial loads on motor and fan bearings by ensuring proper tensioning.
- High Precision: Accurate spring-loaded plunger design eliminates the guesswork associated with "thumb pressure" testing.
- Maximum Versatility: Supports tension measurements up to 35 lbs across extensive belt span distances.
What is the maximum force this tool can measure?
The 1302546 is designed to measure deflection force up to 35 lbs, making it suitable for most standard HVAC and industrial drive applications.
Can I use this for multiple belt drives?
Yes, for banded or multiple belt sets, measure the tension of individual ribs and multiply the required force by the number of belts as specified in your belt tensioning manual.
How often should I check belt tension?
Technicians should check tension upon installation, after a 24-hour run-in period, and during every semi-annual preventative maintenance inspection to account for natural belt stretch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $79.52
-65%$79.52
$27.83Browning 1302546 Belt Tension Checker
The Browning 1302546 Belt Tension Checker is a critical diagnostic tool designed for HVACR technicians and industrial maintenance professionals to ensure optimal power transmission. This spring-loaded belt tension gauge provides a reliable method for measuring deflection force, allowing you to verify that V-belt drives—including 3L, 4L, 5L, A, B, C, D, 3V, 5V, and 8V profiles—are tensioned to exact manufacturer specifications. Improper tension is the leading cause of premature sheave wear and bearing failure; using this V-belt tensioning tool prevents energy loss and extends the service life of blowers, fans, and compressors.
Constructed with a durable calibrated spring mechanism, the 1302546 is adjustable for belt spans ranging from 10 to 170 inches and can measure up to 35 lbs of force. To operate, simply set the large O-ring to the measured span length and the small O-ring to zero. By applying perpendicular pressure until the large O-ring aligns with a straightedge or adjacent belt, the small O-ring provides a precise force reading. This analog tool is essential for maintaining high-efficiency systems where belt slippage or over-tensioning can lead to costly downtime.
Key Benefits:- Universal Compatibility: Validates tension for a wide array of drive profiles including classical V-belts and narrow wedge belts.
- Enhanced Component Longevity: Prevents excessive radial loads on motor and fan bearings by ensuring proper tensioning.
- High Precision: Accurate spring-loaded plunger design eliminates the guesswork associated with "thumb pressure" testing.
- Maximum Versatility: Supports tension measurements up to 35 lbs across extensive belt span distances.
What is the maximum force this tool can measure?
The 1302546 is designed to measure deflection force up to 35 lbs, making it suitable for most standard HVAC and industrial drive applications.
Can I use this for multiple belt drives?
Yes, for banded or multiple belt sets, measure the tension of individual ribs and multiply the required force by the number of belts as specified in your belt tensioning manual.
How often should I check belt tension?
Technicians should check tension upon installation, after a 24-hour run-in period, and during every semi-annual preventative maintenance inspection to account for natural belt stretch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
