BROAN-NuTone S97015612 Motor

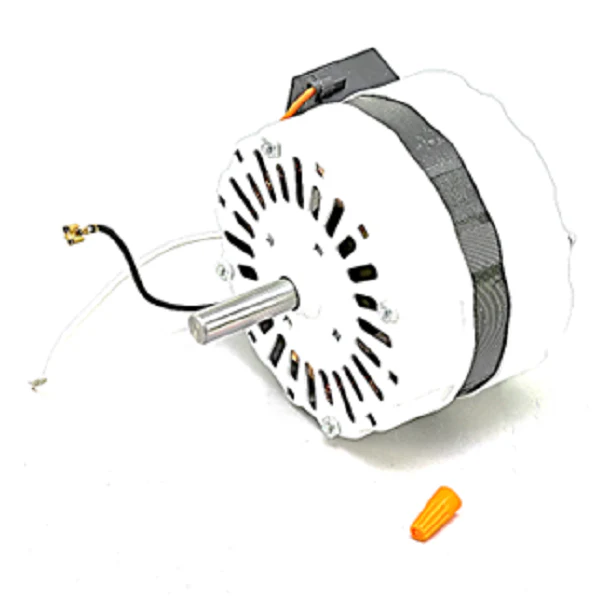

The Broan-NuTone S97015612 Motor is a heavy-duty 120V replacement motor designed specifically for the Broan 356 Attic Ventilator series. Built for the high-demand environment of attic ventilation, this 1/10 HP motor operates at 1500 RPM using a 6.0 Amp draw. As a PSC (Permanent Split Capacitor) motor, it ensures consistent torque and cooler operation compared to standard shaded-pole alternatives. The 5-inch diameter motor features a 1/2" x 1-5/8" shaft and is thermally protected to prevent damage during extreme temperature spikes common in residential roofing applications. HVAC technicians frequently utilize the S97015612 to restore airflow in 356-G, 356-BR, and 356-BK models. This unit is an OEM replacement motor that cross-references with part numbers 99080537, D0816B3120, and DA2G087N. When replacing this attic fan motor, ensure you verify the electrical specs and shaft rotation to maintain proper CFM ratings and system efficiency.
Key Benefits- Direct OEM Compatibility: Specifically engineered for Broan 356 attic ventilators to ensure drop-in replacement without bracket modification.
- Enhanced Durability: Constructed with a rolled steel frame and aluminum flange for superior corrosion resistance in humid attic environments.
- Integrated Safety: Features built-in thermal overload protection to automatically shut down the motor and prevent fire hazards during over-current events.
- High Torque Performance: The 1500 RPM operation provides the necessary static pressure to exhaust heat effectively from large attic spaces.
Is the S97015612 motor compatible with other attic fan brands?
This motor is explicitly designed for Broan-NuTone 356 series ventilators. While the 5-inch diameter is a common standard, always verify the 1/2-inch shaft diameter and mounting bolt patterns before attempting to use it as a generic HVAC replacement motor.
Does this motor include the capacitor?
Yes, as a PSC motor, the capacitor is typically integrated or supplied with the unit to ensure the 120v motor starts reliably under load.
Can I use this motor for a bathroom exhaust fan?
No. This motor is rated for attic ventilation and draws significantly more amperage (6.0 Amps) than standard bathroom fan motors. Using it in a small ventilation housing can lead to overheating and electrical failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
