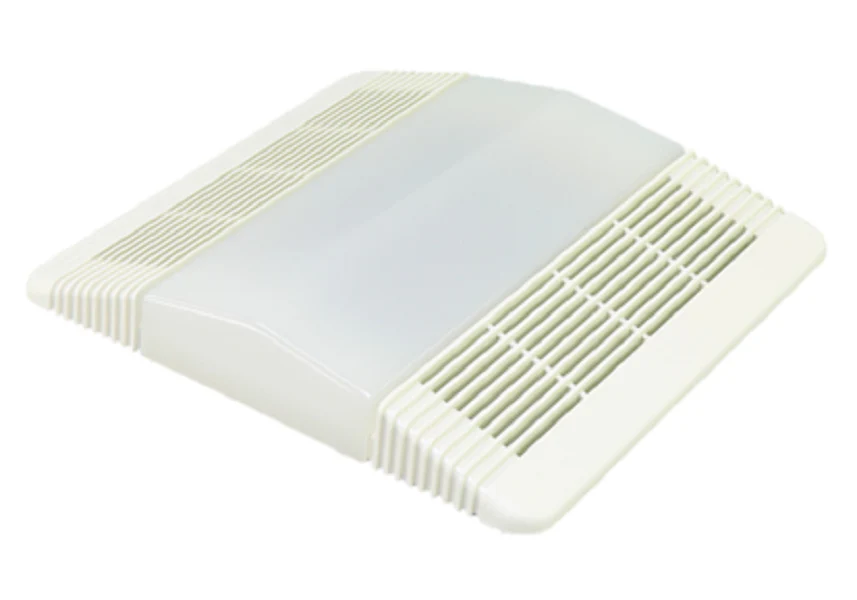

BROAN-NuTone S85315000 Grille
The Broan-NuTone S85315000 Grille is a specialized OEM service part required for maintaining the housing integrity and light diffusion of specific ventilation fan headers. Measuring approximately 12-1/8 inches by 10-3/4 inches, this replacement assembly includes both the white plastic grille and the opaque light lens (part number S89108000). Unlike standard light covers that rely on torsion springs, the S85315000 utilizes a secure mounting system where the grille is held in place by the internal reflector and a central thumb nut. This technical design ensures a flush, vibration-free fit against the ceiling, which is critical for preventing bypass airflow and maintaining the static pressure performance of the blower.
For field technicians, verifying the 763RLN compatibility or 769RLN fitment is essential before installation. This assembly serves as the direct bathroom fan cover replacement for several legacy and current series, including the 669L, 763RLN, 769RF, 769RFT, 769RL, 770F, and VF305CN. The high-impact polystyrene construction is specifically formulated to resist yellowing from UV exposure and heat generated by the internal lamp. When performing a ventilation fan repair, the lens can be easily removed via pre-molded push tabs on the long sides, providing quick access to the bulb without requiring specialized tools.
Key Benefits- OEM Compatibility: Precision-engineered for Broan-NuTone models 763RLN, 769RL, 669L, and 770F.
- Springless Mounting: Attaches directly via the reflector for a more stable and secure installation compared to clip-on alternatives.
- Integrated Light Lens: Includes a high-diffusion opaque lens that optimizes light spread while concealing internal components.
- Durable Construction: Engineered with heat-resistant plastic to ensure longevity in high-moisture bathroom environments.
Is the light lens available as a separate part?
Yes, while this assembly includes the lens, the standalone light lens can be sourced under part number S89108000 if the grille itself is still intact.
Does this grille include the mounting springs?
No, the S85315000 does not use springs. It is secured by a nut (typically a wing nut) located underneath the bulb that threads onto the fan's internal reflector stud.
Will this fit the 655 or 657 series fans?
No, this specific grille is not compatible with the 655, 656, 657, or 659 series. It is vital to verify your fan's model number on the motor housing plate before ordering.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
