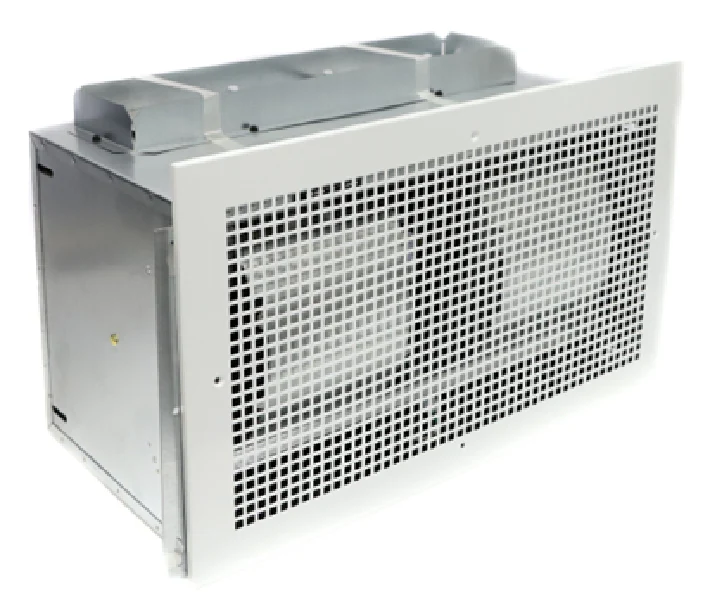

BROAN-NuTone L500 Ventilator
The BROAN-NuTone L500 Ventilator is a high-capacity centrifugal inline blower engineered for continuous duty in demanding commercial and residential environments. Delivering 515 CFM at 0.1" static pressure, this commercial exhaust fan features a 20-gauge galvanized steel housing and an impact-resistant centrifugal blower wheel. Designed specifically for HVAC ventilation systems, the L500 utilizes a 120V, 2.3-amp thermally protected motor, ensuring reliable operation under high static loads. The unit integrates seamlessly into 4-1/2" x 18-1/2" ductwork and is UL Listed for use over bathtubs or showers when connected to a GFCI-protected branch circuit. For contractors seeking a high-flow ventilation solution, this model provides the necessary static pressure performance to overcome long duct runs while maintaining a quiet 3.3 sone rating. Whether used for indoor air quality improvement or moisture mitigation, the L500 remains a staple for HVAC contractors requiring durable, code-compliant air movement hardware.
Key Benefits for Contractors:- High-Volume Performance: Moves 515 CFM efficiently, making it ideal for large conference rooms, locker rooms, or expansive master suites.
- Durable Construction: The 20-gauge galvanized steel housing resists corrosion and provides structural integrity for ceiling or wall installations.
- Flexible Installation: Features 8-way adjustable mounting brackets and a removable motor assembly for simplified maintenance and duct alignment.
- Quiet Operation: The balanced centrifugal blower wheel minimizes vibration and mechanical noise, delivering high airflow without excessive sones.
- Automatic Backdraft Damper: Includes a built-in damper to prevent cold air infiltration and maintain building envelope efficiency.
What is the duct size for the BROAN L500?
The L500 is designed to interface with 4-1/2" x 18-1/2" rectangular ducting, allowing for a low-profile installation in tight plenum spaces.
Is the motor rated for continuous use?
Yes, the permanent split capacitor (PSC) motor is lubricated for life and specifically rated for continuous duty applications.
Can this unit be speed controlled?
Yes, this model is compatible with solid-state speed controls, allowing for precise adjustment of CFM levels to meet specific ASHRAE ventilation requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
