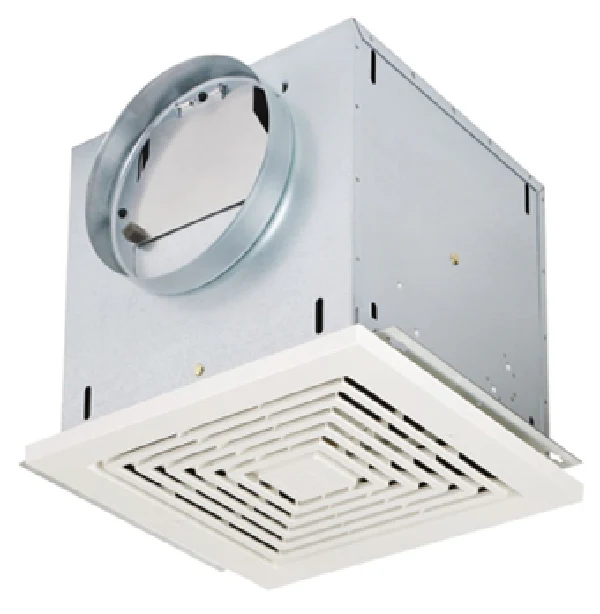

BROAN-NuTone L250E Ventilator
The BROAN-NuTone L250E Ventilator is a direct replacement for the legacy L250 model, engineered specifically for high-capacity ventilation in light commercial environments such as conference rooms and public restrooms. This Energy Star certified unit delivers a powerful 270 CFM rating at a whisper-quiet 1.5 sones, ensuring compliance with ASHRAE 90.1, IECC-C, and IMC building codes. The unit features a rugged 20-gauge galvanized steel housing lined with 1/2-inch acoustic insulation to dampen motor vibration and resonance. Its design includes an 8-inch round duct connector with an integrated backdraft damper to prevent air infiltration when the system is inactive. For installation flexibility, the centrifugal blower wheel and wiring plate are fully adjustable, supporting both horizontal and vertical discharge configurations. The permanently lubricated motor is thermally protected and designed for continuous operation, making it a reliable choice for contractors managing ongoing facility ventilation requirements.
Key Benefits:- Direct Replacement: Seamlessly replaces the discontinued Broan L250 model in existing commercial layouts.
- Quiet Performance: Operates at only 1.5 sones at 0.1" Ps, significantly reducing ambient noise in professional spaces.
- Flexible Mounting: Equipped with 8-position mounting brackets for adaptable installation between ceiling joists or wall studs.
- Durable Construction: Features a corrosion-resistant galvanized steel cabinet and a dynamically balanced blower wheel.
- Code Compliance: AMCA and HVI certified to meet strict performance and sound standards for modern lighting and ventilation.
Is the L250E compatible with previous L250 ducting?
Yes, the L250E maintains the standard 8-inch round duct connection, making it an ideal drop-in replacement for the older L250 series.
Can I adjust the blower speed on this unit?
The blower speed can be adjusted by using a separate electronic variable speed control (such as Model 80L), allowing for precise CFMs and sound level management.
Does this unit include a metal grille?
The standard L250E comes with a white polymer grille. For fire-rated applications or aesthetic upgrades, the MG1 Metal Grille is available as a separate accessory.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
