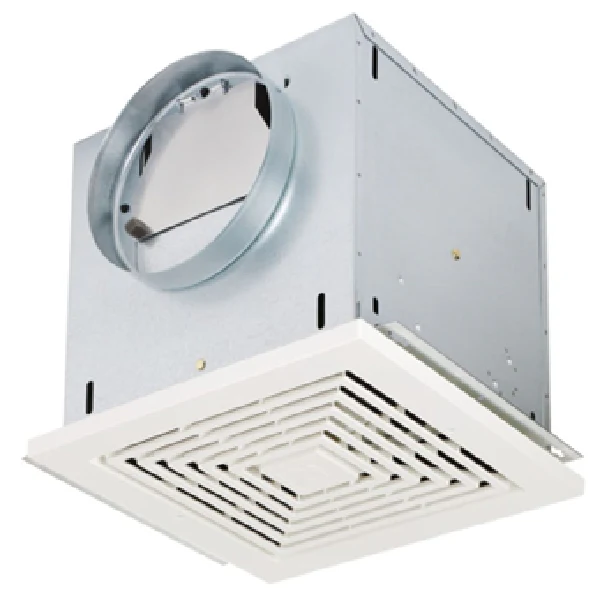

BROAN-NuTone L150E Ceiling Ventilator
The BROAN-NuTone L150E Ceiling Ventilator is a high-performance commercial exhaust fan engineered for continuous duty in demanding environments. Delivering between 147 and 157 CFM at 0.1" static pressure, this unit serves as the direct replacement for the L150, maintaining a consistent footprint for seamless retrofitting. It features a dynamically balanced centrifugal blower wheel and a permanently lubricated motor mounted on vibration isolators, ensuring quiet operation and long-term mechanical reliability. The 20-gauge galvanized steel housing provides superior structural integrity, while the 8-way adjustable mounting brackets simplify installation between ceiling joists. For contractors managing HVAC ventilation systems, the L150E offers a 4-1/2" x 18-1/2" duct connector with a built-in backdraft damper to prevent air infiltration. This ceiling-mounted ventilator is UL Listed and designed for use in professional spaces requiring efficient indoor air quality solutions and moisture control.
- Direct L150 Replacement: Engineered to match the mechanical specifications and dimensions of the legacy L150 model for quick field swaps.
- Industrial Build: Heavy-duty 20-gauge galvanized steel housing resists corrosion and provides a rigid frame for high-static applications.
- Quiet Centrifugal Blower: Features a balanced impact-resistant wheel and a motor isolated from the housing to minimize resonant noise.
- Flexible Installation: Equipped with 8-way adjustable brackets and a multi-position duct connector for versatile rigging in various ceiling configurations.
- Operational Efficiency: Designed for continuous operation with a thermally protected motor for constant exhaust in commercial restrooms or utility rooms.
Common Questions
What is the duct size for the L150E?
The unit utilizes a 4-1/2" x 18-1/2" rectangular duct connector, which includes an integrated backdraft damper to ensure one-way airflow.
Can the L150E be used as a direct replacement for the L150?
Yes, the L150E is the official technical successor to the L150, maintaining compatible housing dimensions and performance curves for service contractors.
Is this unit rated for continuous duty in commercial settings?
Yes, the permanently lubricated motor is specifically rated for continuous operation, making it ideal for high-traffic commercial ventilation needs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
