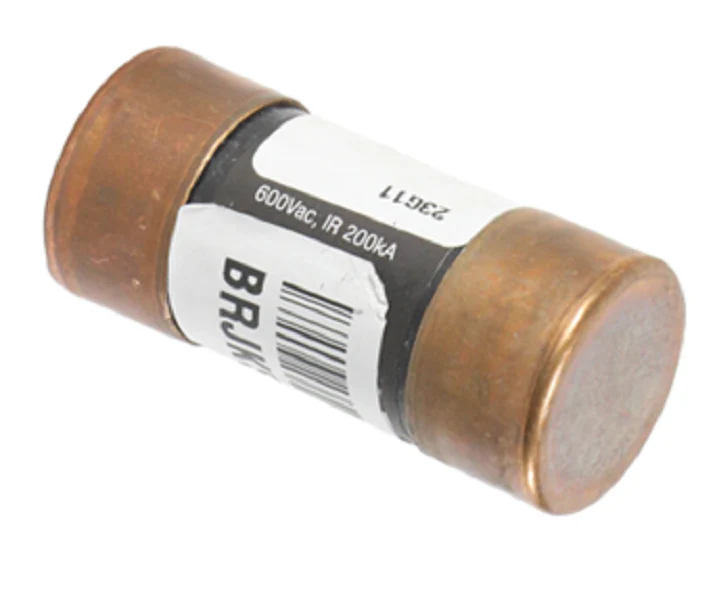

Bray Commercial JKS-50 Fuse
For high-performance circuit protection in commercial HVACR systems, the Bray Commercial JKS-50 Fuse serves as a critical Limitron fast-acting Class J fuse. Engineered for 600VAC applications, this 50A single-element component delivers current-limiting operation to protect sensitive downstream equipment from the devastating effects of short circuits. With a high interrupting rating of 200kA, it ensures compliance with NEC Section 110.9 for managing high-capacity power distribution and machinery disconnects. The ferrule end design provides a secure fit in standard Class J fuse holders, while the melamine body ensures structural integrity under thermal stress. This 50A-600VAC quick acting fuse is specifically optimized for non-inductive loads like lighting and heating circuits, where clearing a fault without extensive component damage is the primary technical requirement. As a veteran-grade part, its dimensions (1.06” x 2.38”) follow the rejection style footprint, preventing hazardous mismatches with other fuse classes during field replacement.
Key Benefits- High Interrupting Rating: Rated at 200kA RMS Sym to handle modern high-capacity electrical systems.
- Component Protection: Provides 10X better current limitation compared to standard fuses to prevent industrial equipment damage.
- Compact Footprint: The Class J size allows for a smaller physical profile in control panels without sacrificing 600V safety.
- Reliable Performance: Fast-acting characteristics are ideal for protecting non-inductive loads such as HVAC heating elements.
What is the difference between a JKS-50 and a time-delay Class J fuse?
The JKS-50 is a fast-acting fuse designed for resistive or non-inductive loads like lighting and heating. Unlike dual-element time-delay fuses (like the LPJ series), it does not provide the ride-through capability needed for high-inrush motor starts.
Can I use this fuse for 240V or 480V HVAC equipment?
Yes, as long as the voltage does not exceed the 600VAC maximum rating. It is commonly used in 480V commercial HVAC disconnects and power panelboards.
Is this a rejection-style fuse?
Yes, the Class J physical dimensions act as a rejection feature, ensuring that only a properly rated 600V Class J fuse can be installed in the holder, preventing the use of lower-rated alternatives.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
