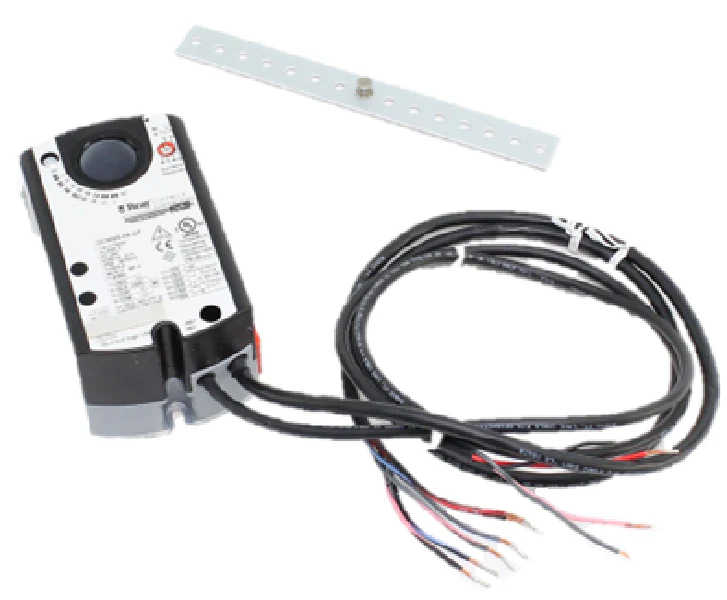

Bray Commercial DCM24-44-AP Actuator
The Bray Commercial DCM24-44-AP Actuator is a high-precision, non-spring return actuator designed for the demanding requirements of modern building automation systems. Operating on a 24VAC supply, this unit delivers a consistent 44 in-lb torque, making it an ideal choice for modulating control of dampers and valves in HVACR applications. The actuator accepts a 0-10VDC control signal, providing seamless integration with standard building controllers for accurate proportional positioning. Built with a rugged NEMA 2 (IP54) enclosure and featuring internal auxiliary switches, this Bray modulating actuator ensures reliable performance in diverse environments. Its 90-second rotation timing and maintenance-free design help technicians minimize field callbacks while maintaining tight system tolerances. Whether you are performing a retrofit or a new installation, the DCM24-44-AP provides the flexibility and torque necessary for efficient air handling and fluid control.
Key Benefits- Precise Control: Provides 44 in-lb of torque with a modulating 0-10VDC signal for accurate damper positioning.
- Enhanced Integration: Includes dual auxiliary switches for position feedback and signaling to external equipment.
- Durable Construction: NEMA 2/IP54 rating protects internal components against dust and light moisture.
- Efficient Installation: Equipped with a 3-foot plenum-rated cable (18 AWG) for direct wiring into commercial systems.
- Universal Compatibility: Mounts easily to various round and square shaft sizes for multi-brand HVACR service.
Is the DCM24-44-AP a fire/smoke safety actuator?
No, this is a non-spring return (NSR) model designed for modulating control. It does not provide a fail-safe position upon loss of power.
Can I use this actuator with a 4-20mA signal?
This specific model is designed for a 0-10VDC input. If 4-20mA control is required, an external 500-ohm resistor is typically needed to convert the signal.
What is the typical lifespan for this unit in a high-cycle application?
The DCM24-44-AP is engineered for approximately 50,000 full-stroke cycles, suitable for standard commercial modulation duty.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
