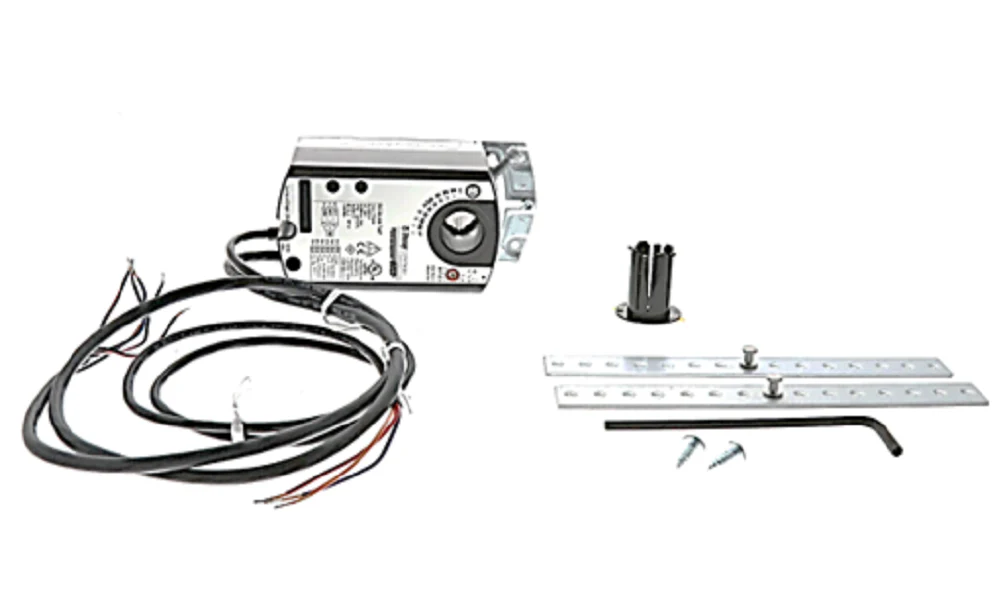

Bray Commercial DC24-44-TAP Actuator
The Bray DC24-44-TAP Actuator is a precision-engineered non-spring return actuator designed for the reliable operation of HVAC damper control and globe valve assemblies. Operating on a 24V AC/DC signal, this unit delivers a consistent 44 in-lb torque output, making it an ideal choice for localized airflow management and terminal unit applications. Engineering auxiliary switches onto the chassis allows for seamless integration into Building Automation Systems (BAS), providing positive feedback for end-switch status and equipment interlocking. The 3-point floating and on/off control logic ensures high-resolution positioning and prevents hunting in stable pressure environments. Built for longevity in light commercial and industrial mechanical rooms, the DC24-44-TAP features a compact footprint and universal shaft mounting for rapid field installation. Its rugged construction maintains calibration over extended duty cycles, ensuring that airflow benchmarks are met without frequent recalibration.
- Torque Output: 44 in-lb (5 Nm) provides sufficient force for standard dampers and pressure-independent valves.
- Integrated Feedback: Equipped with two SPDT auxiliary switches for remote status verification and sequence interlocking.
- Universal Compatibility: Supports 24V AC/DC power, offering flexibility for various control architectures.
- Manual Override: Features a manual declutch button to allow for manual positioning during commissioning or testing.
- Direct Mounting: Simplified shaft coupling design reduces installation time and eliminates the need for complex linkages.
Common Questions Regarding the Bray DC24-44-TAP
Can the Bray DC24-44-TAP be used for fail-safe applications?
No, this is a non-spring return actuator. It will remain in its last position upon loss of power. For applications requiring a safety return, a spring-return model must be utilized.
How do I set the auxiliary switch trip points?
The internal switches are typically pre-set for 10% and 90% rotation, but can be field-adjusted to signal specific damper positions within the 0 to 95-degree rotation range.
Is this unit compatible with a 4-20mA control signal?
The DC24-44-TAP is designed for on/off or floating control. If modulating control (2-10VDC or 4-20mA) is required, a different model within the Bray series should be selected.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
