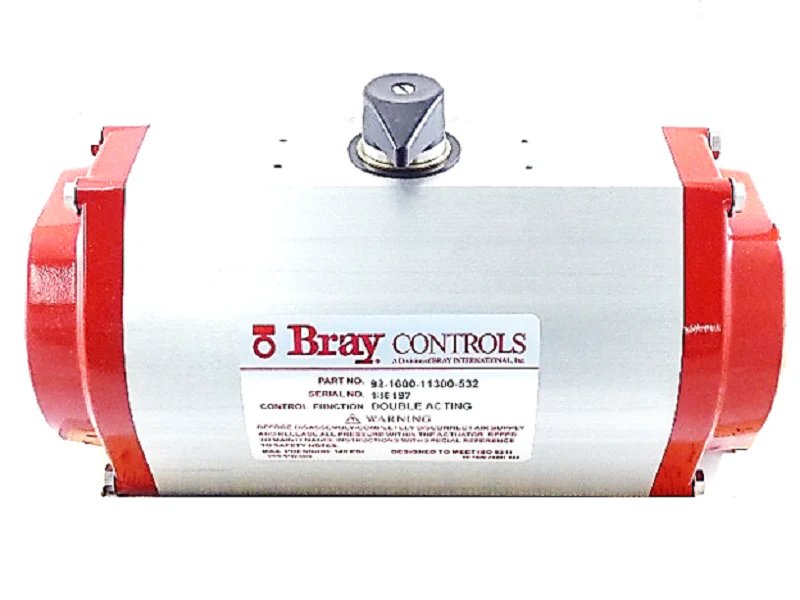

Bray Commercial 92-1600-11300-532 Actuator
The Bray Commercial 92-1600-11300-532 Actuator is a high-performance double acting pneumatic actuator engineered for reliable quarter-turn control of 14-inch and 16-inch butterfly valves. Built with a rugged rack and pinion design, this unit features an extruded aluminum alloy body that is anodized for superior corrosion resistance and polyester-coated die-cast aluminum end caps. Designed for industrial automation and heavy-duty HVACR applications, it utilizes dual opposed pistons to deliver linear torque output throughout the full 90-degree stroke. The ISO 5211 mounting interface ensures direct integration with compatible valve top plates, eliminating the need for external brackets and reducing potential misalignment. Internal Buna-N seals and permanently lubricated acetal bearings provide long-term service life in environments ranging from -4°F to 200°F. With a maximum rating of 140 PSI, this actuator supports both on/off and throttling operations while complying with NAMUR standards for simplified accessory mounting of solenoids and positioners.
Key Benefits- Direct Mount Compatibility: Conforms to ISO 5211 standards for seamless attachment to 14" and 16" butterfly valves without specialized hardware.
- Precision Adjustability: Features two independent travel stops providing +/- 5 degrees of stroke adjustment at both ends of travel.
- Corrosion Protection: The anodized aluminum housing and zinc-plated carbon steel pinion resist harsh mechanical room environments.
- Modular Design: Fully compatible with NAMUR accessories, including limit switches and solenoid valves, for enhanced system feedback.
- High Torque Density: Optimized rack and pinion architecture provides a compact footprint with high output torque for large-diameter flow control.
What air pressure is required for the Bray 92-1600-11300-532?
This double acting unit is designed for a typical operating range of 40 to 140 PSI. For optimal response times, ensure 1/4" minimum tubing diameter and clean, dry compressed air.
Can this actuator be used for throttling applications?
Yes, the Bray Series 92 is suitable for both high-cycle on/off service and precise throttling when paired with a pneumatic or electro-pneumatic positioner.
Is field lubrication necessary for the internal gears?
No, the actuator is factory-lubricated with high-grade grease on the rack and pinion and acetal guides, designed to last the service life of the internal seals.
