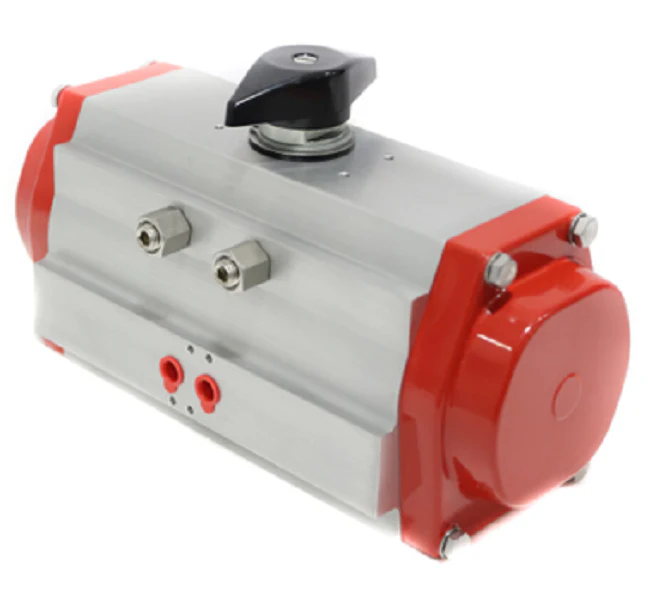

Bray Commercial 92-1190-11300-532 Actuator
The Bray Commercial 92-1190-11300-532 Actuator is a high-performance double acting pneumatic actuator engineered for precise quarter-turn valve automation. As the direct updated version for the 92-1180-11300-532, this rack and pinion actuator features an upgraded piston design that maintains the exact same form, fit, and function for seamless field replacement. Built with a rugged extruded aluminum alloy body and polyester-coated end caps, it provides linear torque output throughout the 90-degree stroke. This unit is ISO 5211 compliant for direct mounting to butterfly valves and ball valves, eliminating the need for external linkages. Designed for on-off and throttling applications, it operates on dry compressed air or inert gas at pressures up to 140 psi. The Bray Series 92 utilizes integral porting to reduce external tubing requirements, while bidirectional travel stops allow for +/- 5 degrees of precise adjustment at both ends of travel, ensuring reliable flow control in demanding commercial HVACR environments.
Key Benefits- Direct Replacement: Seamlessly replaces legacy 92-1180 units with an improved piston design for enhanced service life.
- Precision Control: Features linear torque output and bidirectional travel stops for exact valve positioning.
- Modular Flexibility: NAMUR accessory interface allows for easy mounting of solenoid valves and positioners.
- Reduced Maintenance: Totally enclosed, self-contained design with factory lubrication for long-term reliability.
- Corrosion Resistance: Anodized aluminum housing with stainless steel fasteners protects against harsh mechanical room conditions.
Is the 92-1190-11300-532 compatible with my existing 92-1180 hardware?
Yes, this is the official updated version. It maintains identical ISO 5211 mounting dimensions and port threading, making it a drop-in replacement for the 92-1180-11300-532 without any modification to your valve assembly.
What media can be used to power this Bray actuator?
Standard operation requires dry industrial compressed air or inert gases. If your application involves high cycling in cold climates, we recommend using an air dryer and a line lubricator to prevent internal seal wear.
Can this actuator be used for both on-off and modulating service?
Correct. This double acting actuator is designed for both on-off and throttling service when paired with the appropriate electro-pneumatic positioner or solenoid valve control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $483.30
-65%$483.30
$169.16Bray Commercial 92-1190-11300-532 Actuator
The Bray Commercial 92-1190-11300-532 Actuator is a high-performance double acting pneumatic actuator engineered for precise quarter-turn valve automation. As the direct updated version for the 92-1180-11300-532, this rack and pinion actuator features an upgraded piston design that maintains the exact same form, fit, and function for seamless field replacement. Built with a rugged extruded aluminum alloy body and polyester-coated end caps, it provides linear torque output throughout the 90-degree stroke. This unit is ISO 5211 compliant for direct mounting to butterfly valves and ball valves, eliminating the need for external linkages. Designed for on-off and throttling applications, it operates on dry compressed air or inert gas at pressures up to 140 psi. The Bray Series 92 utilizes integral porting to reduce external tubing requirements, while bidirectional travel stops allow for +/- 5 degrees of precise adjustment at both ends of travel, ensuring reliable flow control in demanding commercial HVACR environments.
Key Benefits- Direct Replacement: Seamlessly replaces legacy 92-1180 units with an improved piston design for enhanced service life.
- Precision Control: Features linear torque output and bidirectional travel stops for exact valve positioning.
- Modular Flexibility: NAMUR accessory interface allows for easy mounting of solenoid valves and positioners.
- Reduced Maintenance: Totally enclosed, self-contained design with factory lubrication for long-term reliability.
- Corrosion Resistance: Anodized aluminum housing with stainless steel fasteners protects against harsh mechanical room conditions.
Is the 92-1190-11300-532 compatible with my existing 92-1180 hardware?
Yes, this is the official updated version. It maintains identical ISO 5211 mounting dimensions and port threading, making it a drop-in replacement for the 92-1180-11300-532 without any modification to your valve assembly.
What media can be used to power this Bray actuator?
Standard operation requires dry industrial compressed air or inert gases. If your application involves high cycling in cold climates, we recommend using an air dryer and a line lubricator to prevent internal seal wear.
Can this actuator be used for both on-off and modulating service?
Correct. This double acting actuator is designed for both on-off and throttling service when paired with the appropriate electro-pneumatic positioner or solenoid valve control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
