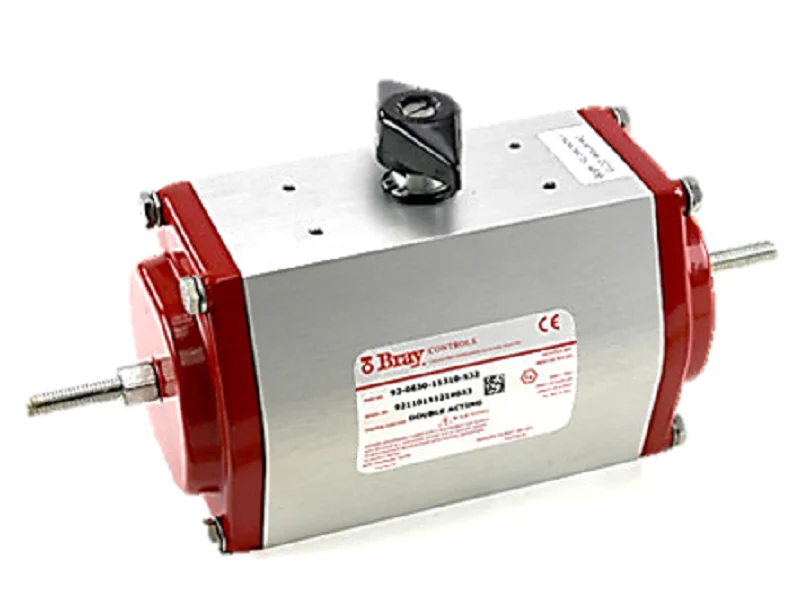

Bray Commercial 92-0830-11310-532 Actuator
The Bray Commercial 92-0830-11310-532 Actuator is a high-performance double acting pneumatic actuator engineered for precise quarter-turn control in demanding HVACR and industrial environments. This Series 92 rack and pinion actuator is specifically designed for integration with ball valves and butterfly valves, delivering a linear torque output across the full 90-degree rotation. Utilizing an opposed-piston design, the Bray 92-0830-11310-532 provides reliable air-to-open and air-to-close operation with a maximum operating pressure of 140 PSI. Built with a rugged anodized aluminum housing and polyester-coated end caps, this Bray pneumatic valve actuator ensures long-term durability and resistance to corrosive conditions. The unit features ISO 5211 direct mounting capabilities, eliminating the need for complex brackets or external linkages while maintaining a compact footprint. For advanced system monitoring, the NAMUR accessory interface allows for the seamless addition of positioners and limit switches, ensuring high-accuracy performance in both on-off and throttling applications.
Key Benefits- Optimized Performance: Rack and pinion design ensures efficient energy transfer and smooth, consistent torque throughout the stroke.
- Precision Adjustment: Features dual independent travel stop screws for fine-tuning open and closed positions (+/- 5 degrees).
- Reduced Maintenance: Permanently lubricated bearings and guides minimize friction and extend the service life of internal components.
- Simplified Installation: Standard ISO 5211 mounting patterns allow for immediate pairing with compatible quarter-turn valves.
- System Flexibility: Integral porting reduces the requirement for external tubing, protecting the air lines from accidental damage.
Is this actuator suitable for modulating service?
Yes, the Bray Series 92 double acting units are designed for both high-cycle on-off service and precise throttling/modulating applications when paired with a pneumatic or electro-pneumatic positioner.
What is the temperature range for standard operation?
This model is rated for standard temperature ranges from -4°F to 200°F, making it suitable for most commercial indoor and outdoor HVACR installations.
Can I mount accessories directly to this unit?
Absolutely. The actuator includes a standard NAMUR interface for top-mounted accessories and visual position indicators, ensuring compatibility with industry-standard hardware.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
