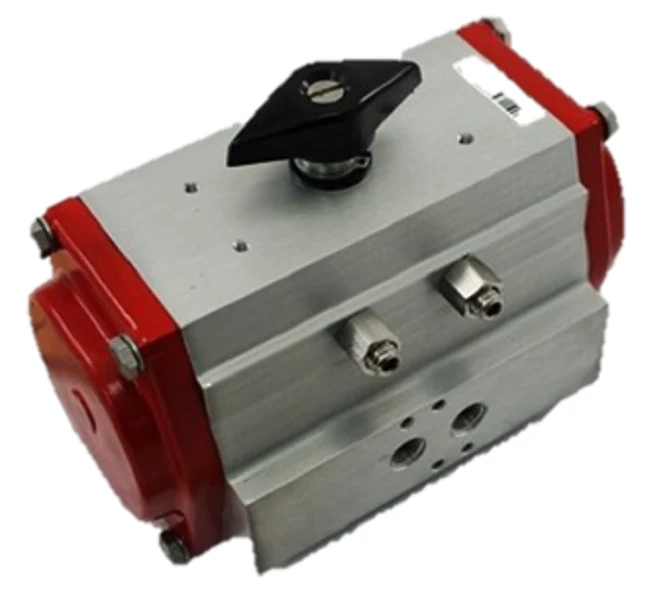

Bray Commercial 92-0830-11305-532 Actuator
The Bray Commercial 92-0830-11305-532 Actuator is a high-performance rack and pinion pneumatic actuator engineered for precise control in commercial HVAC and industrial process applications. This double-acting actuator features a 140# 90-degree pinion design, delivering consistent torque output throughout the full stroke. With its Type 4/4X anodized aluminum housing, the unit provides superior corrosion resistance in demanding environments. The Series 92 utilizes a NAMUR mounting interface for simplified solenoid and accessory integration, ensuring repeatable cycling and reliable valve automation. Designed for butterfly valve automation and industrial ball valve assemblies, this quarter-turn pneumatic drive minimizes hysteresis and ensures tight shut-off performance. Field technicians frequently specify this model for its compact footprint and ease of maintenance when managing high-cycle flow control systems.
- Precision Control: High-tolerance rack and pinion design ensures accurate 90-degree rotation for rigorous flow modulation.
- Durable Construction: Hard-anodized aluminum body and polyester-coated end caps provide protection against harsh mechanical room conditions.
- Standardized Integration: Features ISO 5211 mounting and VDI/VDE 3845 compliance for universal accessory compatibility.
- Reliable Performance: Engineered for high-cycle life with low-friction bearings to reduce maintenance intervals.
Common Questions
What is the maximum supply pressure for the Series 92 actuator?
The Bray Series 92 pneumatic actuators are typically rated for a maximum pressure of 140 psi (10 bar), though optimal performance is usually achieved at 80 psi.
Can this actuator be converted to spring-return (fail-safe) operation?
This specific model is a double-acting configuration; converting to spring-return requires a specific spring cartridge kit compatible with the 083 size housing.
Is the 92-0830-11305-532 compatible with non-Bray valves?
Yes, as long as the valve shaft meets the pinion dimensions and the mounting pad follows the ISO 5211 standard for torque requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
