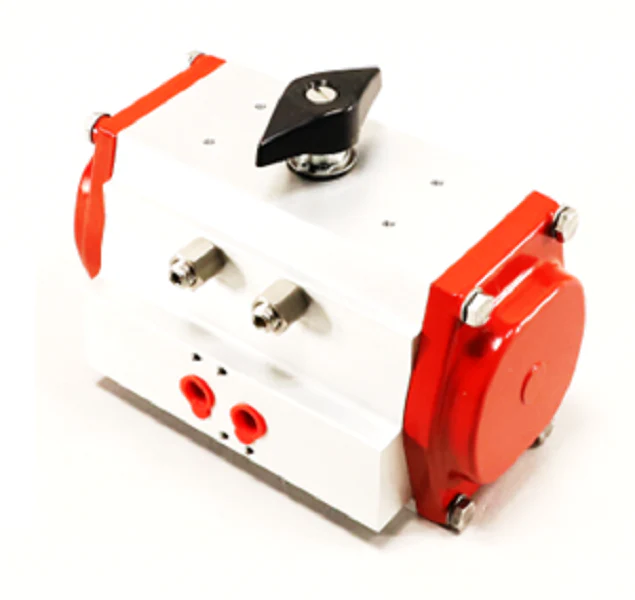

Bray Commercial 92-0830-11300-532 Actuator
The Bray Commercial 92-0830-11300-532 Actuator is a high-performance double acting pneumatic actuator engineered for precise automation of quarter-turn valves, including butterfly and ball valves. Utilizing a rugged rack and pinion design, this Series 92 actuator delivers consistent linear torque output throughout the 90-degree stroke. Built with an anodized aluminum body and polyester-coated end caps, it provides superior corrosion resistance in demanding HVACR and industrial environments. This model is rated for a maximum operating pressure of 140 PSI and features a direct-mount ISO 5211 interface, eliminating the need for complex brackets or linkages. Integrated integral porting reduces external tubing requirements, while the acetal piston guides and bearings ensure low-friction operation and a long service life. Designed for both on-off and throttling applications, this unit offers ±5° of travel adjustment at each end of the stroke for exact valve positioning.
Key Benefits- High Torque Efficiency: The double acting pneumatic mechanism ensures reliable power for butterfly valve automation.
- Modular Design: Features a standard NAMUR interface for seamless integration of positioners, solenoids, and limit switches.
- Rugged Construction: Durable anodized aluminum housing and stainless steel fasteners protect against harsh site conditions.
- Minimal Maintenance: Permanently lubricated bearings and a self-contained design reduce field service requirements.
- Precision Control: Dual independent travel stop adjustments allow for fine-tuning of the open and closed positions.
What is the maximum pressure for the Bray 92-0830-11300-532?
This actuator is designed for a maximum operating pressure of 140 PSIG (10 Bar), with a recommended operating range beginning at 40 PSI.
Is this actuator compatible with throttling service?
Yes, the Bray Series 92 is suitable for both high-cycle on-off duty and precise modulating/throttling applications when paired with the appropriate positioner.
Can it be mounted in any orientation?
The unit is designed to be mounted in any position without loss of performance, provided the pneumatic supply lines are kept clear of moisture.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
