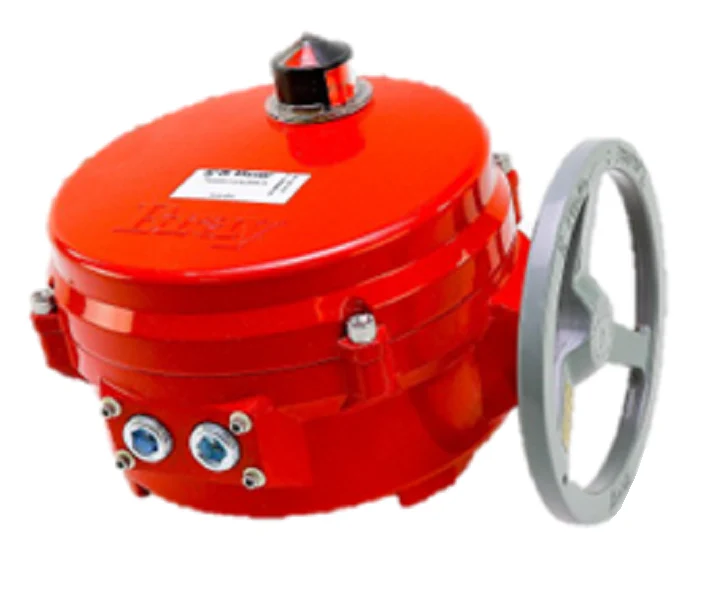

Bray Commercial 70-24-0201 Actuator
The Bray Commercial 70-24-0201 Actuator is a high-torque solution designed for demanding HVAC and industrial automation applications. This 24V two-position actuator delivers a robust 2000 lb-in torque, making it a direct VA-9075-12 cross reference for contractors looking to replace or upgrade older Johnson Controls units. Built with a non-fail safe actuator action and a 30-second run time, it provides rapid response and precision on-off control. The unit features an enclosed terminal strip for secure field wiring and dual 3/4" NPT conduit connections to streamline integration. For commissioning and maintenance, the integrated manual override handwheel and auxiliary switches allow for local positioning and remote status feedback. As a veteran-grade electric industrial actuator, it is engineered to handle large-scale valve assemblies where high-seating force is mandatory for leak-free performance.
Key Benefits for Technicians:
- High Torque Output: Generates 2000 lb-in to handle large butterfly and ball valves in high-pressure systems.
- Cross-Compatibility: Direct replacement for the Johnson Controls VA-9075-12, ensuring minimal piping or bracket modifications.
- Enhanced Field Control: Includes two internal auxiliary switches for dry-contact signaling and a manual override for emergency operation.
- Durable Construction: NEMA-rated enclosure with a powder-coated finish designed for commercial mechanical rooms.
- Simplified Wiring: Features an accessible enclosed terminal strip and dual conduit entries for clean, professional installation.
Common Questions:
Is the Bray 70-24-0201 a fail-safe model?
No, this is a non-fail safe actuator. It maintains its last position upon loss of power. For applications requiring spring return, please consult our technical team for a compatible alternative.
What is the primary control signal for this unit?
This model uses a 2-position (On/Off) control signal. It is designed for 24 VAC or 24 VDC power supplies, providing versatility for various control transformers.
Can I manually operate this actuator if the controller fails?
Yes, the manual override handwheel is standard on the 70 series, allowing for manual positioning of the valve during power outages or system testing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,760.02
-65%$2,760.02
$966.01Bray Commercial 70-24-0201 Actuator
The Bray Commercial 70-24-0201 Actuator is a high-torque solution designed for demanding HVAC and industrial automation applications. This 24V two-position actuator delivers a robust 2000 lb-in torque, making it a direct VA-9075-12 cross reference for contractors looking to replace or upgrade older Johnson Controls units. Built with a non-fail safe actuator action and a 30-second run time, it provides rapid response and precision on-off control. The unit features an enclosed terminal strip for secure field wiring and dual 3/4" NPT conduit connections to streamline integration. For commissioning and maintenance, the integrated manual override handwheel and auxiliary switches allow for local positioning and remote status feedback. As a veteran-grade electric industrial actuator, it is engineered to handle large-scale valve assemblies where high-seating force is mandatory for leak-free performance.
Key Benefits for Technicians:
- High Torque Output: Generates 2000 lb-in to handle large butterfly and ball valves in high-pressure systems.
- Cross-Compatibility: Direct replacement for the Johnson Controls VA-9075-12, ensuring minimal piping or bracket modifications.
- Enhanced Field Control: Includes two internal auxiliary switches for dry-contact signaling and a manual override for emergency operation.
- Durable Construction: NEMA-rated enclosure with a powder-coated finish designed for commercial mechanical rooms.
- Simplified Wiring: Features an accessible enclosed terminal strip and dual conduit entries for clean, professional installation.
Common Questions:
Is the Bray 70-24-0201 a fail-safe model?
No, this is a non-fail safe actuator. It maintains its last position upon loss of power. For applications requiring spring return, please consult our technical team for a compatible alternative.
What is the primary control signal for this unit?
This model uses a 2-position (On/Off) control signal. It is designed for 24 VAC or 24 VDC power supplies, providing versatility for various control transformers.
Can I manually operate this actuator if the controller fails?
Yes, the manual override handwheel is standard on the 70 series, allowing for manual positioning of the valve during power outages or system testing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
