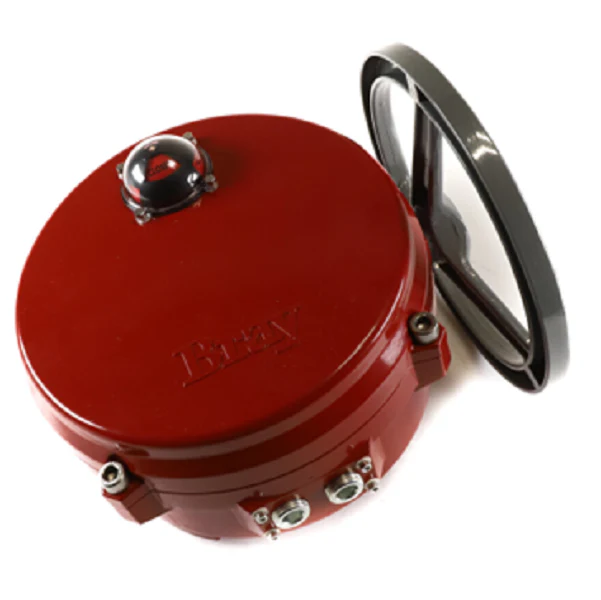

Bray Commercial 70-0651-113G0-536K Actuator
The Bray Commercial 70-0651-113G0-536K is a precision-engineered modulating electric actuator designed for robust performance in high-torque HVACR and industrial applications. Operating on 120V single-phase power, this unit delivers a substantial 6500 in-lb torque output with a rapid 30-second stroke time, making it an ideal choice for large-scale quarter-turn valve automation. This model is the direct field replacement for legacy units 70-0651-113A0-536B and 70-0651-113G0-536B, ensuring seamless integration into existing building automation systems.
Built with a NEMA 4/4X/IP65 rated housing, the 70-0651 is optimized for demanding environments such as cooling towers, chillers, and outdoor mechanical rooms. The internal Servo NXT controller provides high-accuracy positioning with standard 4-20mA or 0-10VDC analog signals. Contractors benefit from the junction-box style design, which allows for effortless access to terminal strip wiring and tool-free auxiliary switch cam adjustments. The integrated manual override handwheel includes a safety power-cut feature to prevent accidental motor engagement during field service.
Key Benefits
- Direct Replacement Logic: Engineered to replace obsolete Bray codes 70-0651-113A0-536B and 70-0651-113G0-536B without additional mounting hardware.
- High Torque Reliability: Delivers 6500 in-lb of torque for reliable management of high-pressure butterfly and ball valves.
- Internal Auxiliary Switches: Includes standard SPDT auxiliary switches for remote position verification and interlock functionality.
- Environmental Protection: Polyester powder-coated die-cast aluminum enclosure provides superior resistance to UV, chemicals, and industrial wash-downs.
- Simplified Commissioning: Features a high-visibility position indicator and easy-access limit cams for faster startup times.
Common Questions
Is this actuator compatible with legacy 70-series mounting?
Yes, this model utilizes the standard ISO 5211 mounting pattern, making it a direct retrofit for older 6500 in-lb Bray actuators.
Can the stroke speed be adjusted in the field?
The stroke time is factory-set at 30 seconds for 60Hz operation. Note that operation on 50Hz power will result in a 20% slower cycle time.
What happens if the manual override is engaged while the unit has power?
The manual override system is designed with an internal safety switch that interrupts power to the motor as soon as the handwheel is pulled into the engaged position.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
