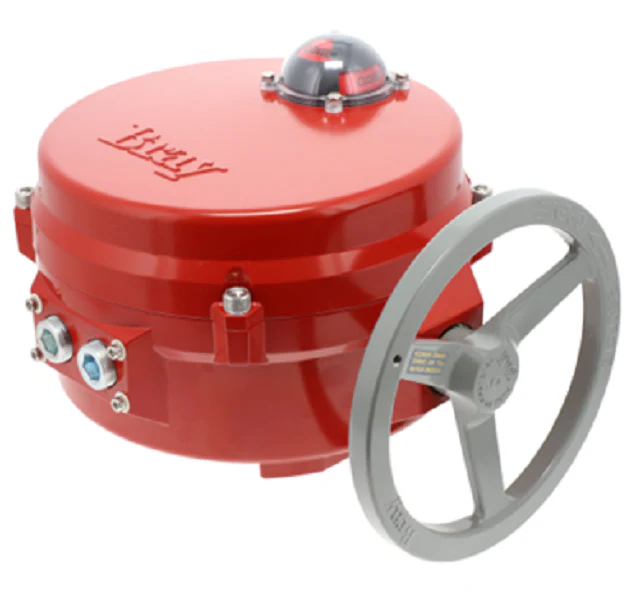

Bray Commercial 70-E301-113DA-536K Actuator
The Bray 70-E301-113DA-536K Actuator is a heavy-duty 120V electric actuator engineered for high-torque commercial and industrial valve automation. Designed for 2-position control, this unit delivers a robust 3000 lb-in torque capacity, making it suitable for large-scale butterfly and ball valve assemblies where reliable seating is critical. With a rapid 30-second cycle time, it ensures responsive flow modulation in demanding material handling and HVACR environments. This model serves as the direct replacement for 70-0301-113D0-536A, 70-0301-113DA-536A, and 70-0301-113DA-536K, maintaining exact mounting and wiring compatibility for streamlined field retrofits. Integrating an auxiliary switch actuator configuration, it provides essential feedback loops for system automation and status verification. Built with a focus on industrial valve automation and high-torque performance, this actuator is a standard for contractors requiring a heavy-duty rotary actuator that handles high-cycle distribution and manufacturing applications.
Key Benefits for HVACR Contractors
- High Torque Output: Rated at 3000# capacity to ensure positive shut-off in high-pressure piping systems.
- Fast Response: Optimized 30-second stroke time reduces lag in critical process control loops.
- Versatile Wiring: Standard 120V 2-position operation integrates easily into existing building automation systems.
- Auxiliary Feedback: Includes internal auxiliary switches for remote monitoring and interlocking of secondary equipment.
- Rugged Construction: Designed for commercial HVACR and manufacturing environments where duty cycles are high.
Common Questions
Is this actuator compatible with older Bray Series 70 models?
Yes, the 70-E301-113DA-536K is the designated technical replacement for the 70-0301 series, preserving the same 120V power requirements and mechanical interface.
What is the primary use for the auxiliary switches in this unit?
The auxiliary actuator switches allow technicians to confirm the valve position (open or closed) back to the controller or to trigger external equipment like pumps or fans.
Can this actuator be used in outdoor distribution centers?
While designed for heavy-duty industrial applications, ensure the enclosure rating meets your specific environmental moisture and temperature requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
