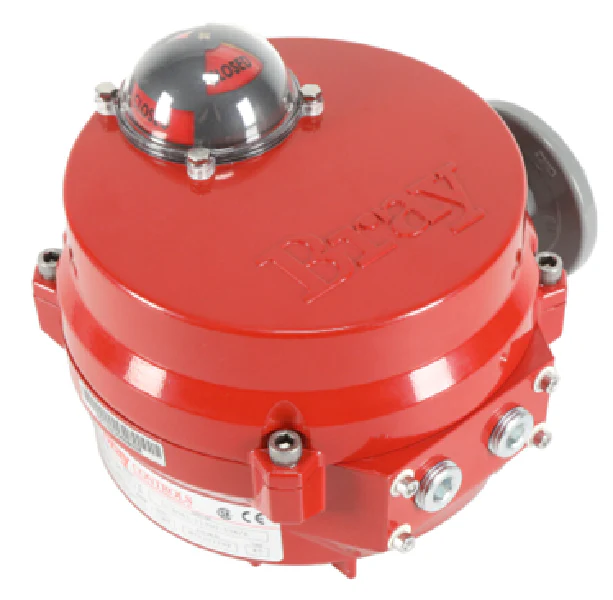

Bray Commercial 70E061-113G0536/K Actuator
The Bray Commercial 70E061-113G0536/K Actuator is a heavy-duty industrial rotary actuator engineered for high-torque valve automation in demanding HVAC and process control environments. This 120V electric actuator delivers a robust 3000 in-lb torque output, making it an ideal choice for large-diameter butterfly valves or high-pressure ball valve assemblies. With a rapid 30-second cycle time, it provides responsive modulation and reliable positioning. This model serves as the direct replacement for 70-0061-113G0-536K, ensuring a seamless mechanical and electrical drop-in for legacy system maintenance. The inclusion of IRB (Industrial Rotary Actuator) standards and HE (High Efficiency) electrical components ensures thermal stability and long-term duty cycle performance in commercial mechanical rooms. Whether you are managing central plant chillers or complex air handling units, this Bray actuator provides the precision required for tight shut-off and accurate flow control.
Key Contractor Benefits
- High Torque Output: Provides 3000 in-lb of torque to handle high-differential pressure applications without stalling.
- Rapid Actuation: Features a 30-second operation time for systems requiring quick response to temperature or pressure setpoint changes.
- 120V Compatibility: Standard 120V power supply simplifies field wiring and integration into existing building automation systems.
- Legacy Replacement: Confirmed drop-in replacement for Bray 70-0061-113G0-536K, reducing downtime during field retrofits.
- Rugged Reliability: Built with IRB model type specifications for durability in high-vibration and industrial-grade environments.
Common Installation Questions
Is this actuator compatible with my existing Bray valve body?
The 70E061-113G0536/K is designed for universal mounting with standard Bray commercial and industrial valve linkages. As a direct successor to the 70-0061-113G0-536K, it maintains consistent bolt patterns and drive bush dimensions.
What is the duty cycle for this 3000 in-lb actuator?
This HE (High Efficiency) model is rated for intermittent duty typical of HVAC modulation; however, for continuous high-cycle process applications, ensure your controller logic accounts for the 30-second stroke speed to prevent hunting.
Does this unit include auxiliary switches?
This unit features internal limit switches for motor travel; for specific feedback requirements or additional actuator accessories, please verify your wiring diagram against the 113G series specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
