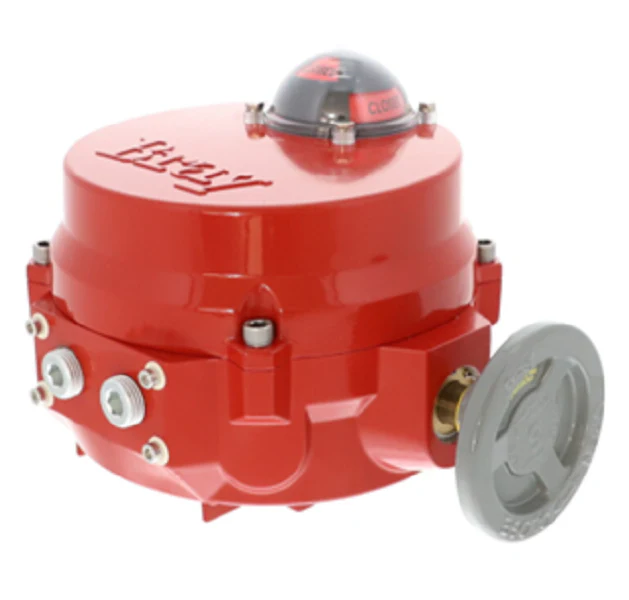

Bray Commercial 70-0060-113F3-536K Actuator
The Bray Commercial 70-0060-113F3-536K is a heavy-duty industrial valve actuator designed for reliable two-position (on/off) control in demanding HVACR applications. Operating on a 24V power supply, this electric actuator delivers a high torque output of 600 lb-in with a fast 60-second run time, ensuring precise flow management in large-scale hydronic systems. This model features integrated auxiliary switches for position feedback and status monitoring, allowing for seamless integration into building automation systems. Engineered as a robust solution for butterfly valve and ball valve assemblies, it serves as the direct replacement actuator for legacy models including 70-0060-113D3-536A, 70-0060-113DC-536K, and 70-24-0061. Its NEMA-rated enclosure and rugged internal geartrain are built to withstand high cycle rates and vibration, making it a standard choice for contractors focusing on system uptime and mechanical longevity.
- Direct Retrofit Compatibility: Engineered to replace discontinued units without extensive field modifications.
- High Torque Output: Provides 600 lb-in of force to reliably actuate valves under high pressure differentials.
- Auxiliary Feedback: Factory-installed switches facilitate remote monitoring of the valve's open or closed state.
- Rapid Response: A 60-second cycle time enables quick system adjustments to maintain setpoint parameters.
- Durable Construction: Built for commercial environments where consistent duty cycles and thermal stability are required.
Common Questions
Is the 70-0060-113F3-536K compatible with my older 70-24-0061 series?
Yes, this unit is the official technical successor to the 70-24-0061 and 70-0060-113D3-536A, maintaining the same mounting footprint and electrical requirements.
Can this actuator be used for modulating (0-10V) control?
No, this specific model is designed for 2-position control. For proportional or modulating applications, a different series within the Bray 70 line would be required.
What is the purpose of the integrated auxiliary switches?
They provide dry contact signals to your controller or BAS, confirming whether the valve has completed its stroke, which is essential for safety interlocking.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,466.21
-65%$2,466.21
$863.17Bray Commercial 70-0060-113F3-536K Actuator
