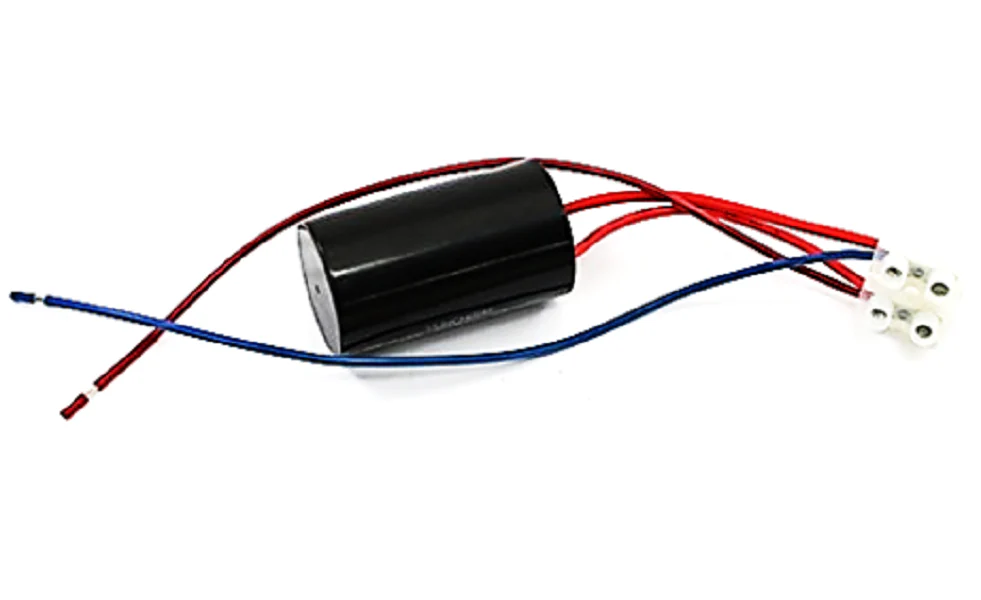

Bray Commercial 70-0054-71100-536 Capacitor
Installing a reliable 20mfd 220V capacitor is critical for maintaining the starting torque and operational efficiency of Bray Commercial actuator motors. The Bray 70-0054-71100-536 is a high-specification motor run capacitor designed to handle the rigorous duty cycles of HVAC valve actuators and damper controls. Built to withstand consistent electrical loads, this replacement actuator capacitor ensures that the phased power delivery remains stable, preventing motor overheating or premature failure in commercial HVAC systems. When troubleshooting a non-responsive Bray actuator, checking the capacitance of the 70-0054-71100-536 is a standard procedure, as a degraded component will lead to sluggish valve positioning or stalled motor operation. This OEM Bray part is manufactured to precise tolerances for consistent microfarad output, ensuring seamless integration with existing building automation systems. Using the correct 20 microfarad capacitor ensures the electrical phase shift required for optimal motor rotation is maintained under variable torque demands.
Key Benefits- Stable Capacitance: Rated at 20mfd to provide consistent starting and running torque for Bray 70 series actuators.
- Voltage Compatibility: Engineered for 220V AC applications, ensuring performance stability during voltage fluctuations.
- Industrial Durability: Constructed to handle the high ambient temperatures often found in mechanical rooms and air handling units.
- Direct OEM Replacement: Ensures electrical compatibility with Bray Commercial hardware without the need for field modifications.
What are the symptoms of a failing actuator capacitor?
A failing Bray actuator capacitor typically manifests as a humming sound without movement, intermittent operation, or the motor becoming hot to the touch while failing to drive the valve or damper.
Can I use a higher voltage rated capacitor as a substitute?
While a higher voltage rating (such as 370V or 440V) can physically function, it is critical to match the 20mfd capacitance exactly to avoid damaging the motor windings or altering the torque profile.
Why is the 220V rating important for this component?
The voltage rating indicates the maximum peak voltage the dielectric can handle; using a 220V capacitor in a properly matched circuit ensures the longevity of the power supply and the actuator motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
