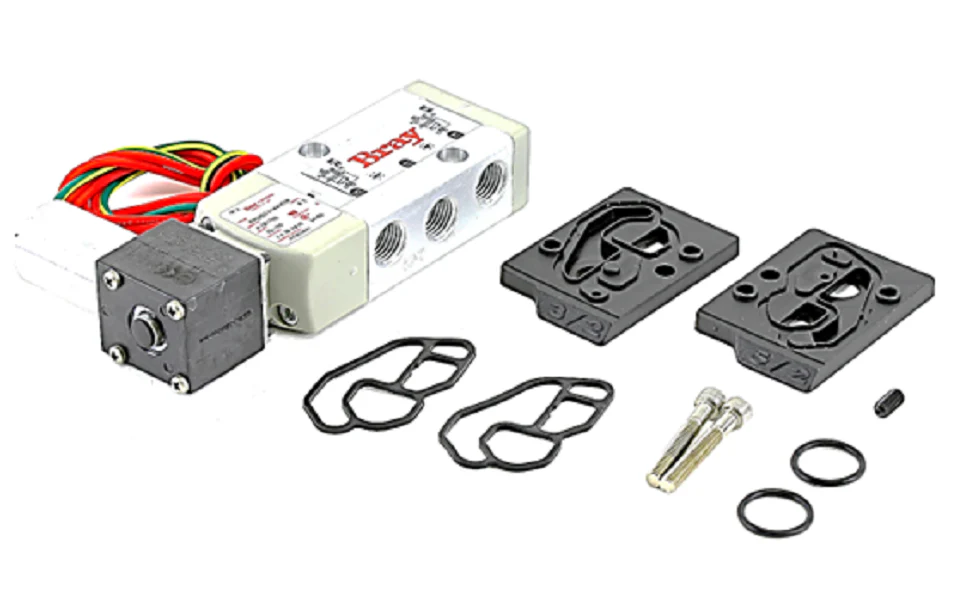

Bray Commercial 630250-21440536 Solenoid
The Bray 630250-21440536 Solenoid is a direct-mount pneumatic accessory engineered specifically for integration with Bray Series 92/93 pneumatic actuators. Operating on a 24V AC/DC supply, this solenoid provides reliable directional control for automating quarter-turn valves in demanding HVAC and industrial process environments. The unit features a robust NEMA 4/4X enclosure, ensuring high-level protection against moisture ingress and corrosion in outdoor or washdown applications. Designed for NAMUR mounting standards, it allows for a clean, tubing-free connection to the actuator, reducing potential leak points and simplifying field installation. This 4-way/5-port solenoid valve can be field-converted for 3-way operation, making it a versatile component for both double-acting and spring-return configurations. Its high flow coefficient (Cv) ensures rapid cycle times and consistent seating torque, maintaining system efficiency under varying pressure conditions.
Key Benefits:
- Direct NAMUR Mounting: Eliminates external piping and reduces installation time by mounting directly to Bray pneumatic actuators.
- NEMA 4/4X Rated: Durable construction provides reliable performance in harsh environments, preventing electrical failure from environmental exposure.
- Low Power Consumption: The 24V solenoid coil is optimized for energy efficiency while maintaining high force for consistent valve switching.
- Universal Compatibility: Specifically sized for the Bray 92/93 Series to ensure precise port alignment and optimal pneumatic flow.
- Manual Override: Includes a standard manual override feature for troubleshooting and commissioning during power-down scenarios.
Common Questions:
Can this solenoid be used for both 3-way and 4-way operations?
Yes, the Bray 630250-21440536 is designed with a convertible interface, allowing it to control either spring-return (3-way) or double-acting (4-way) Series 92/93 actuators.
What is the standard electrical connection for this unit?
This model typically features a 1/2-inch NPT conduit entry or a DIN connector, ensuring compatibility with standard industrial wiring and 24V control loops.
Is this solenoid suitable for outdoor installations?
Yes, the NEMA 4/4X rating ensures the device is weather-tight and protected against windblown dust and rain, making it suitable for rooftops and mechanical rooms.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
