Bray Commercial 300600-11010119 Valve

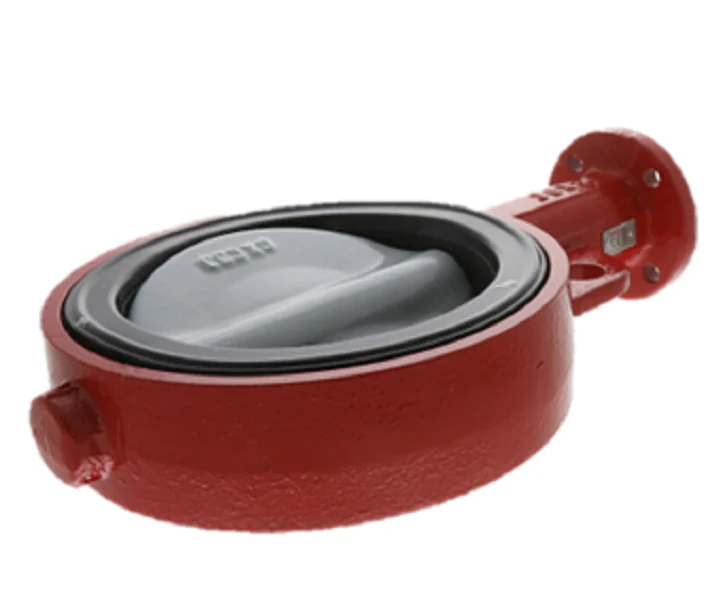

The Bray 300600-11010119 is a high-performance 6-inch wafer-style butterfly valve from the Series 30 Full Cut line, engineered for precise flow control in demanding industrial and HVACR environments. This cast iron butterfly valve features an ASTM A126 Class B body and an EPDM seat (Ethylene Propylene Diene Monomer), providing a resilient bubble-tight shutoff and excellent chemical resistance at temperatures up to 250°F. The ASTM A536 ductile iron disc is Nylon 11 coated to reduce torque and extend the life of the internal assembly, while the ASTM A582 Type 416 stainless steel stem ensures high tensile strength and corrosion resistance. With a 175 PSI pressure rating, this Bray Series 30 valve is the industry standard for ready-mix concrete batch plants, weighed water scales, and dust collection systems. Its universal design allows for seamless integration with 920930-11300532 air actuators or 010500-21100007 manual handle kits for versatile operation.
Key Benefits for Technicians- Reduced Actuator Wear: The Nylon 11 coated ductile iron disc significantly lowers seating torque, extending the service life of pneumatic actuators.
- High-Integrity Sealing: The EPDM seat covers the body completely, preventing any process media from contacting the cast iron valve body.
- Field Serviceable: The tongue-and-groove seat design simplifies on-site maintenance and component replacement.
- Standardized Mounting: Features an ISO 5211 top flange for direct mounting of actuators, eliminating the need for expensive brackets.
- Blow-out Proof Stem: Internal stainless steel stem design ensures maximum safety and operation stability under high-pressure flow.
What is the maximum temperature rating for this valve?
Equipped with an EPDM seat, this valve is rated for continuous service from -20°F to 250°F, making it suitable for hot water and steam-heavy applications.
Can this valve be used for dead-end service?
As a wafer-style butterfly valve, it is designed to be sandwiched between flanges. For dead-end service where downstream piping may be removed, a lug-style butterfly valve (Series 31) is typically recommended.
Is the disc material compatible with abrasive media?
Yes, the Nylon 11 coating on the ductile iron disc provides a hard, slick surface that resists abrasion from particulate-heavy media like dry bulk or concrete mix.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
