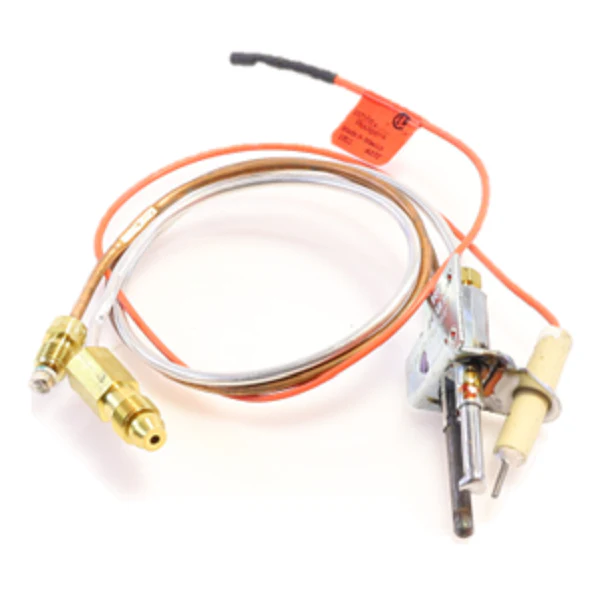

Bradford White 233-46278-04 Pilot Assembly
The Bradford White 233-46278-04 Pilot Assembly is a critical OEM replacement component designed for compatibility with specific high-efficiency atmospheric vent water heaters. This assembly features an integrated thermocouple and pilot burner, engineered to maintain a consistent standing pilot and ensure precise millivolt signal transmission to the gas control valve. As a veteran technician knows, the Caldyn 233-46278-04 is built to withstand high combustion chamber temperatures while preventing thermopile drop-out or nuisance shutdowns. It serves as a direct drop-in for Bradford White Defender Safety System models, ensuring the flame rectification circuit or thermal output remains within exact factory specifications. When troubleshooting pilot outage codes or carbon buildup on the igniter electrode, replacing the entire assembly ensures the orifice and sensing bulb are properly aligned for optimal ignition performance and safety.
Key Benefits
- OEM Precision: Direct factory replacement for Bradford White 233-46278-04 ensures exact fitment and alignment within the burner tray.
- Enhanced Durability: Constructed with high-grade alloys to resist corrosion and degradation caused by constant heat cycles.
- Reliable Ignition: Pre-set pilot orifice provides a stable flame for consistent thermocouple heating and faster valve response.
- Simplified Installation: Complete assembly reduces labor time when addressing water heater pilot won't stay lit issues.
Common Questions
What causes this pilot assembly to fail most frequently?
Most failures result from carbon soot accumulation on the sensing tip or a clogged pilot orifice, which prevents the thermocouple from generating the necessary voltage to hold the electromagnetic valve open.
Is this assembly compatible with LP (Propane) units?
This specific part is typically configured for Natural Gas (NG) applications. Always verify the orifice size and manufacturer part number against the unit's rating plate before installation.
Do I need to replace the entire assembly if only the thermocouple is bad?
While individual components may be available, technicians recommend replacing the full 233-46278-04 assembly to ensure all components, including the pilot tubing connections and brackets, are fresh and leak-free.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
