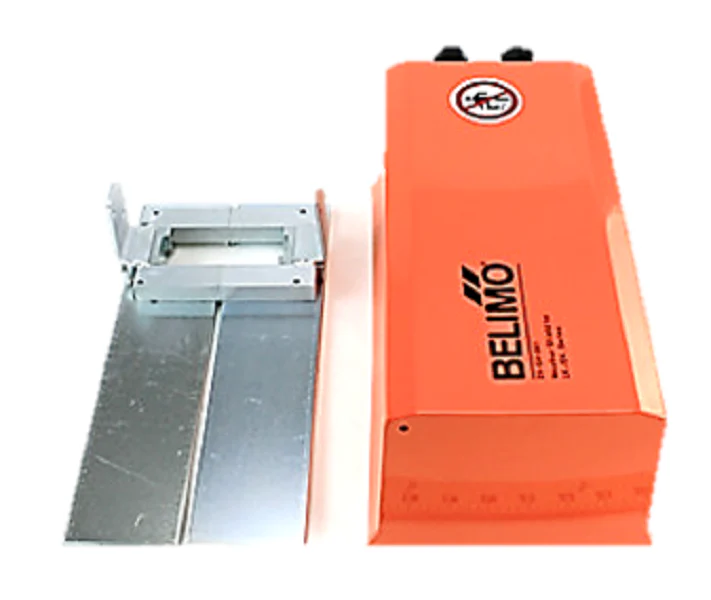

Belimo ZS-GV-001 Weather Shield
The Belimo ZS-GV-001 Weather Shield provides robust protection for LV and SV series actuators in demanding environments. Engineered as a durable actuator weather cover, this housing protects internal components from UV degradation, precipitation, and debris. It is essential for NEMA 2 field installation requirements where actuators are exposed to external elements. The clear cover design allows for high visibility of the position indicator and manual override without compromising the seal. Contractors specify the ZS-GV-001 for HVAC valve actuator protection to ensure reliable operation in rooftop or mechanical room applications subject to overspray. Built to Belimo accessory specifications, this shield features a high-impact polycarbonate construction that maintains structural integrity under fluctuating temperatures. Utilizing this weather shield for Belimo actuators reduces downtime caused by environmental fouling and simplifies maintenance by keeping the drive mechanism clean and accessible for long-term field service.
Key Benefits
- Direct Compatibility: Specifically engineered for Belimo LV and SV series actuators, ensuring a precise fit and reliable seal.
- NEMA 2 Protection: Enhances the environmental rating of the actuator for outdoor or high-moisture HVAC control systems.
- UV and Impact Resistance: High-grade polycarbonate construction prevents sun-bleaching and mechanical damage from field debris.
- Maintenance Efficiency: The transparent housing allows for rapid visual inspection of actuator stroke and position without disassembly.
Common Questions
Is the ZS-GV-001 compatible with LM or NM series actuators?
No, this specific model is dimensioned for LV and SV global valve actuators. For LM or NM series, a different enclosure like the ZS-100 or ZS-150 is required.
Does this cover provide a NEMA 4X rating?
The ZS-GV-001 is rated for NEMA 2/IP22 protection. For wash-down environments or complete weatherproof actuator requirements, consult the ZS series NEMA 4X options.
Can the manual override be accessed with the shield installed?
The housing is designed to protect while providing access, but the cover must be removed or pivoted to engage the manual crank on the actuator body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $402.68
-65%$402.68
$140.94Belimo ZS-GV-001 Weather Shield
The Belimo ZS-GV-001 Weather Shield provides robust protection for LV and SV series actuators in demanding environments. Engineered as a durable actuator weather cover, this housing protects internal components from UV degradation, precipitation, and debris. It is essential for NEMA 2 field installation requirements where actuators are exposed to external elements. The clear cover design allows for high visibility of the position indicator and manual override without compromising the seal. Contractors specify the ZS-GV-001 for HVAC valve actuator protection to ensure reliable operation in rooftop or mechanical room applications subject to overspray. Built to Belimo accessory specifications, this shield features a high-impact polycarbonate construction that maintains structural integrity under fluctuating temperatures. Utilizing this weather shield for Belimo actuators reduces downtime caused by environmental fouling and simplifies maintenance by keeping the drive mechanism clean and accessible for long-term field service.
Key Benefits
- Direct Compatibility: Specifically engineered for Belimo LV and SV series actuators, ensuring a precise fit and reliable seal.
- NEMA 2 Protection: Enhances the environmental rating of the actuator for outdoor or high-moisture HVAC control systems.
- UV and Impact Resistance: High-grade polycarbonate construction prevents sun-bleaching and mechanical damage from field debris.
- Maintenance Efficiency: The transparent housing allows for rapid visual inspection of actuator stroke and position without disassembly.
Common Questions
Is the ZS-GV-001 compatible with LM or NM series actuators?
No, this specific model is dimensioned for LV and SV global valve actuators. For LM or NM series, a different enclosure like the ZS-100 or ZS-150 is required.
Does this cover provide a NEMA 4X rating?
The ZS-GV-001 is rated for NEMA 2/IP22 protection. For wash-down environments or complete weatherproof actuator requirements, consult the ZS series NEMA 4X options.
Can the manual override be accessed with the shield installed?
The housing is designed to protect while providing access, but the cover must be removed or pivoted to engage the manual crank on the actuator body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
