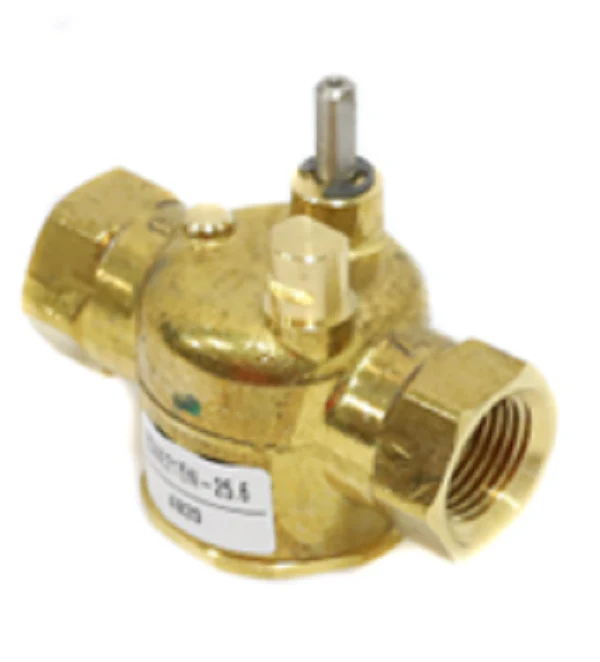

Belimo ZONE215N-25 Actuator
The 1/2" Belimo ZONE215N-25 is a high-performance 2-way zone valve designed for precision control in hydronic systems, including fan coil units and baseboards. Featuring a forged brass body and a stainless steel stem, this NPT female actuator assembly excels in both variable and constant flow applications. With a Cv 2.5 rating and a close-off pressure of 50 psi, it ensures reliable on/off operation for chilled or hot water systems with up to 50% glycol. The EPDM seat and seals provide an ANSI Class III leakage rate of 0.1%, maintaining system efficiency in compact installation environments. This spring return actuator-compatible valve supports fail-safe positioning, making it an essential component for contractors seeking a Belimo zone valve replacement that meets rigorous cULus and NEMA 1 standards. Its 300 psi static pressure rating and wide fluid temperature range (32°F to 212°F) provide the durability required for demanding commercial and residential HVACR projects.
Key Benefits- Forged Brass Durability: Robust construction with stainless steel internal trim for long-term reliability in specialized hydronic loops.
- Compact Profile: Specifically engineered to fit in tight mechanical closets and baseboard enclosures where space is at a premium.
- Efficient Shut-off: High close-off pressure and EPDM seating minimize thermal bypass and energy loss.
- Universal Compatibility: Standard 1/2" NPT female connections allow for seamless integration with existing piping and Belimo actuators.
What is the maximum glycol concentration allowed for this valve?
The Belimo ZONE215N-25 is rated for use with chilled or hot water containing up to 50% glycol media.
Can this valve be used in steam applications?
No, this unit is designed specifically for water-based hydronic systems with a maximum temperature of 212°F.
Does this valve support fail-safe operation?
Yes, when paired with a compatible spring return actuator, the assembly can be configured for fail-safe open or closed positions during power loss.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
