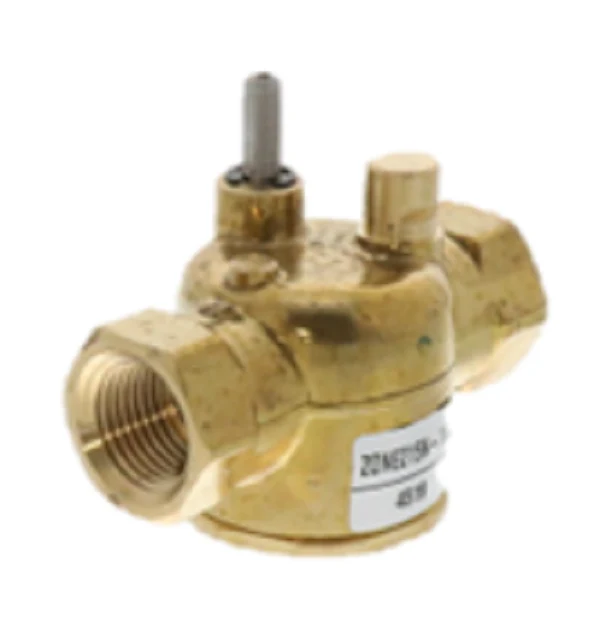

Belimo ZONE215N-10 Actuator
The Belimo ZONE215N-10 is a high-performance 2-way zone valve designed for precise on/off control in compact hydronic environments. Engineered with a 1/2" NPT female connection and a Cv rating of 1.0, this valve is ideal for fan coil units, baseboards, and radiant heating systems. Its forged brass body and stainless steel stem ensure long-term reliability when handling chilled or hot water with up to 50% glycol concentrations. The EPDM seals provide tight shut-off, maintaining an ANSI Class III leakage rate of 0.1% even at a close-off pressure of 75 psi.
This HVAC zone valve is part of the Belimo Zone series, optimized for compatibility with both 24 VAC and 120 VAC actuators. The direct-coupled design allows for simple field assembly without specialized tools, making it a staple for commercial HVAC maintenance and energy-efficient retrofits. With a 300 psi body pressure rating and a fluid temperature range of 32°F to 212°F, the ZONE215N-10 provides the structural integrity required for modern building automation systems and variable flow hydronic circuits.
Key Benefits- High Close-Off Performance: Maintains a 75 psi close-off rating to prevent bypass and leakage in high-head pressure systems.
- Corrosion Resistant Trim: Features stainless steel trim and an EPDM seat for superior durability against aggressive hydronic fluids.
- Compact Footprint: Specifically designed to fit into tight enclosures, fin tube casings, and small terminal unit cabinets.
- Application Versatility: Suitable for both constant and variable flow systems, supporting energy-efficient HVAC zone control.
What is the maximum glycol concentration for this valve?
The Belimo ZONE215N-10 is rated for use with chilled or hot water containing up to 50% glycol.
Which actuators are compatible with the ZONE215N-10?
This valve body is designed to pair with Belimo ZONE series actuators, available in 24V and 120V configurations with spring return or non-spring return fail-safe options.
Can this valve be used in steam applications?
No, this specific model is engineered for hydronic systems (water and glycol) and is not rated for steam service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
