Belimo ZG-GMA Adaptor Kit

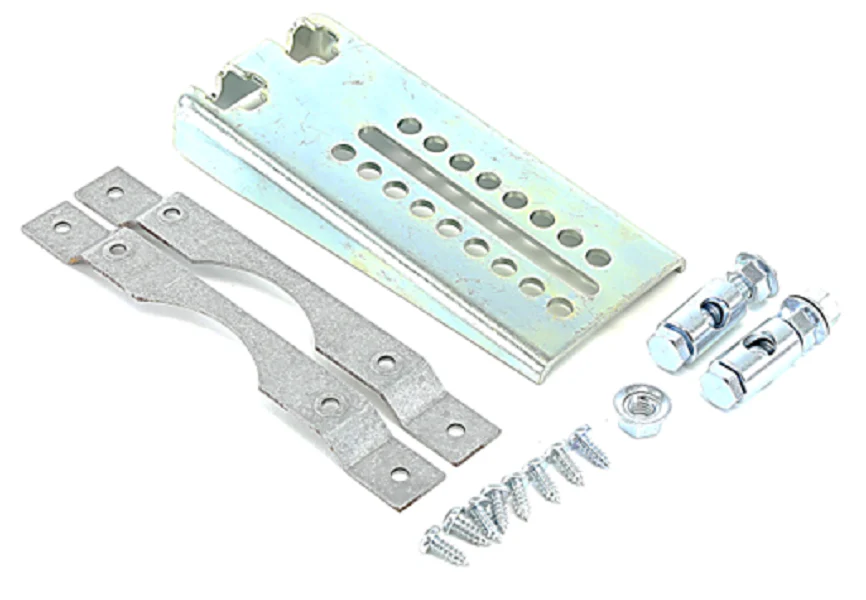

The Belimo ZG-GMA Adaptor Kit is engineered for precise mechanical linkage in HVAC damper applications where direct actuator-to-shaft mounting isn't feasible. This robust crankarm adaptor kit provides the necessary components to reliably convert rotary actuator motion into linear damper operation, ensuring optimal airflow control. Specifically designed for flat installations, the ZG-GMA includes an AH-25 crank arm, two KG10 ball joints, mounting brackets, a spacer, and all essential hardware for a secure setup. It's compatible with Belimo GK, GM, and AMQ series actuators, offering a versatile solution for challenging installations. When paired with universal mounting brackets like the ZG-100 or ZG-104, this kit enables comprehensive crank arm functionality, critical for maintaining system integrity and performance. This kit is a fundamental component for contractors needing a dependable actuator mounting kit for complex damper configurations, facilitating efficient damper shaft linkage and precise rotary to linear motion conversion in various HVAC systems.
- Key Benefits:
- Enables actuator installation in space-constrained or non-direct mount scenarios.
- Facilitates reliable conversion of rotary actuator movement to linear damper action.
- Includes all necessary hardware for a complete and secure installation.
- Compatible with multiple Belimo actuator series (GK, GM, AMQ) for broad application.
- Designed for flat installation, ensuring a compact and efficient setup.
Common Questions:
- What is the primary use case for the Belimo ZG-GMA? This kit is specifically designed for situations where a Belimo actuator cannot be directly mounted onto the damper shaft, requiring a crank arm linkage for operation.
- Which Belimo actuators are compatible with this kit? The ZG-GMA is compatible with Belimo GK, GM, and AMQ series actuators.
- What components are included in the ZG-GMA kit? The kit typically includes an AH-25 crank arm, two KG10 ball joints, mounting brackets, a spacer, and all required mounting hardware.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $80.11
-65%$80.11
$28.04Belimo ZG-GMA Adaptor Kit
