Belimo ZG-112 Bracket

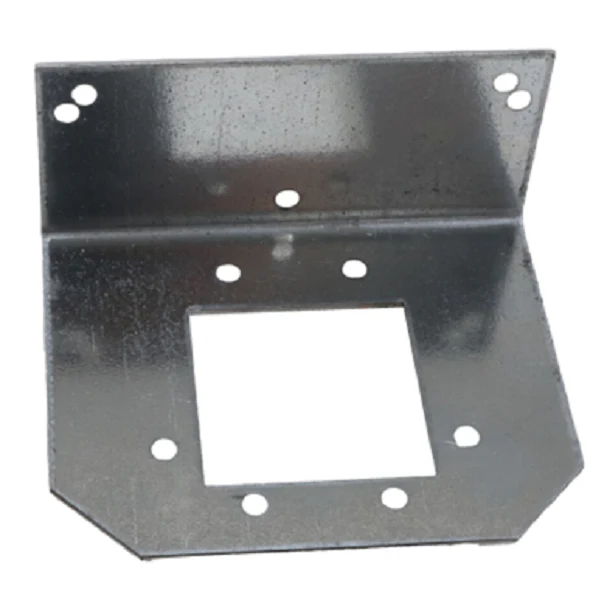

The Belimo ZG-112 is a heavy-duty LF right angle bracket designed specifically for mounting LF series actuators in applications where direct coupling to a damper shaft is not feasible. This HVAC actuator mounting hardware provides the necessary offset and structural rigidity for crank arm and linkage assemblies. Engineered from high-grade galvanized steel, the ZG-112 ensures long-term resistance to corrosion and mechanical fatigue in demanding airflow control environments. When performing a Belimo actuator retrofit, this bracket facilitates easy installation onto flat surfaces or round damper housings, maintaining precise actuator alignment to prevent binding or premature wear on the drive motor. Its pre-punched hole patterns are optimized for damper linkage kits, allowing technicians to achieve proper mechanical stroke adjustment and torque transfer. Utilizing the correct mounting bracket for LF actuators is critical for ensuring fail-safe performance and consistent seating pressure in commercial damper control systems.
Key Benefits for Technicians- Compatible with all Belimo LF series actuators for versatile field installation.
- Constructed from 11-gauge galvanized steel to prevent flexing under high-torque loads.
- Facilitates indirect mounting solutions for tight mechanical spaces or restricted shaft access.
- Simplifies the actuator replacement process by providing standardized mounting points.
- Improves linkage geometry, ensuring smooth 90-degree rotation of damper vanes.
What actuators are compatible with the ZG-112?
This bracket is specifically engineered for the Belimo LF series, providing the exact bolt pattern required for secure attachment without field modifications.
When should I use a ZG-112 instead of direct coupling?
Use this right angle bracket when the damper shaft is too short to reach the actuator, or when the actuator must be mounted remotely using a crank arm and ball joint linkage.
Does the bracket include mounting hardware?
The ZG-112 typically includes the necessary bolts to secure the LF actuator to the bracket, though surface-mounting fasteners for the bracket itself must be selected based on the duct or mounting surface material.
