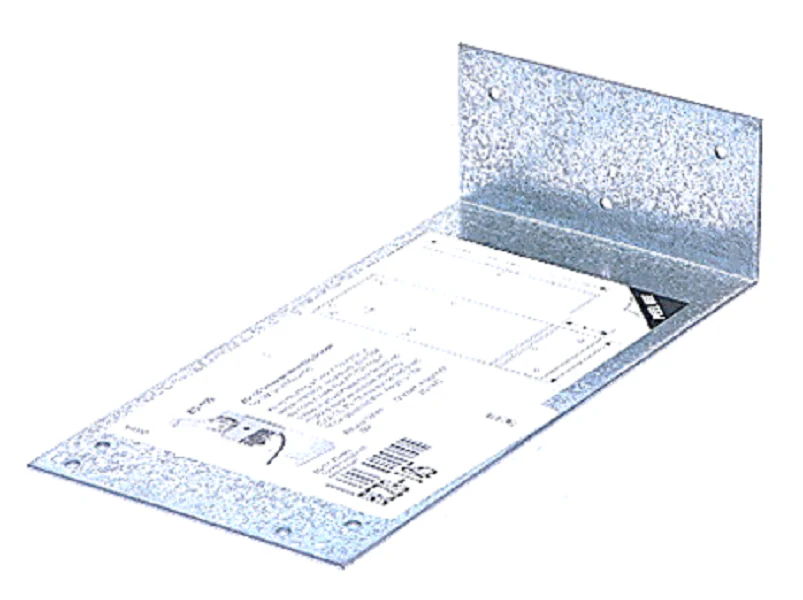

Belimo ZG-105 Bracket
The Belimo ZG-105 is a heavy-duty right angle bracket engineered for NMB(X) series actuators. Fabricated from 16-gauge galvanized steel, this universal mounting bracket is the professional solution for HVAC installations where a direct-coupled connection to the damper shaft is obstructed or impossible. It is specifically designed to facilitate crankarm style actuator mounting, allowing for a 90° rotation even in tight clearances between the ductwork and adjacent walls.
For technicians retrofitting older systems, the ZG-105 bracket features pre-punched hole patterns that perfectly align with NM series actuators when paired with an AH-25 crankarm adapter kit. This versatility supports both inside and outside duct mounting, providing the rigid platform necessary to maintain linkage alignment and prevent actuator binding. Whether you are managing airflow in VAV terminal units or air handling units, this bracket ensures a secure, square foundation for high-torque mechanical operations.
- Engineered Compatibility: Optimized for NMB(X) and NM series actuators using standard HVAC damper linkage kits.
- Durable Construction: Made from corrosion-resistant 16-gauge galvanized steel for long-term reliability in mechanical rooms.
- Flexible Installation: Pre-drilled with three 9/64-inch base holes; allows for two different mounting orientations to solve field clearance issues.
- Precision Alignment: Purpose-built to maintain the crankarm adaptor geometry, ensuring full 90-degree damper travel without slippage.
Can the ZG-105 be used for different actuator brands?
This bracket is specifically hole-patterned for Belimo NMB(X) and NM series. While it is a universal mounting bracket, using it with other brands may require custom drilling to ensure proper torque distribution.
Is this bracket suitable for outdoor use?
Yes, the galvanized steel provides excellent moisture resistance, though we recommend a weather shield for actuators exposed to direct UV or heavy precipitation.
What extra hardware is needed for a full linkage setup?
Typically, you will need the AH-25 crankarm adaptor and a KG-series ball joint to complete the mechanical connection to the damper jackshaft.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
