Belimo ZG-104 Bracket

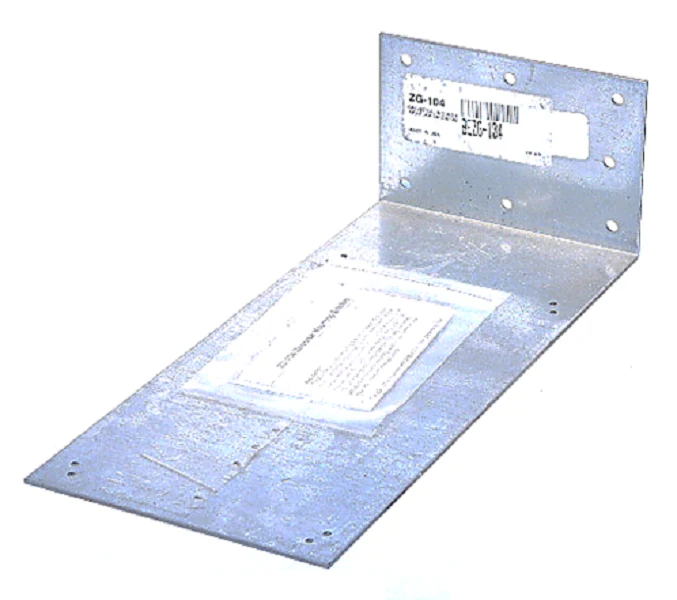

The Belimo ZG-104 Bracket is a heavy-duty universal right angle bracket engineered for demanding HVACR actuator installations. Manufactured from 12-gauge galvanized steel, this mounting solution is specifically designed for applications where the actuator cannot be direct-coupled to the damper shaft due to space constraints or the absence of a suitable mounting surface. Measuring 13-5/8" H x 7-1/2" W x 4" base, the ZG-104 provides the structural rigidity necessary to prevent flexing during high-torque operations.
This HVAC actuator mounting bracket features a versatile hole pattern compatible with Belimo GM, AM, and NM series actuators, as well as AF, NF, and SM series. It supports both internal and external duct mounting and can be fastened directly to the ductwork or the damper assembly. For field-service technicians and mechanical contractors, the ZG-104 is a critical actuator linkage accessory when converted to remote mounting using a crankarm kit, ensuring reliable performance in both new construction and retrofit maintenance applications.
Key Benefits- Universal Compatibility: Seamlessly integrates with Belimo GM, AM, NM, SM, AF, and NF series actuators.
- Heavy-Duty Construction: The 12 GA galvanized steel frame ensures long-term durability and corrosion resistance in mechanical rooms.
- Versatile Mounting: Supports flexible installation configurations, including right-angle actuator mounting for restricted access areas.
- Precise Alignment: Pre-drilled hole patterns reduce onsite fabrication time and ensure exact linkage assembly alignment.
Which Belimo actuators are compatible with the ZG-104?
The ZG-104 is designed for use with the GM, AM, NM, SM, AF, and NF actuator series. It is frequently paired with crankarm kits for indirect mounting.
What are the dimensions of the ZG-104 right angle bracket?
The unit stands 13-5/8 inches high with a 7-1/2 inch width and a stable 4-inch base, providing a robust industrial damper actuator support.
Can this bracket be used for outdoor installations?
While the galvanized steel offers moisture resistance, Belimo recommends using a protective NEMA-rated enclosure if the actuator and bracket are exposed to direct weather elements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
