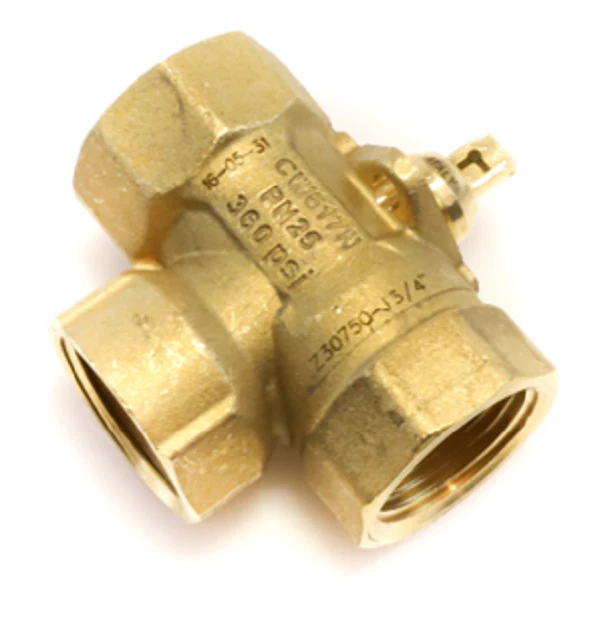

Belimo Z3075Q-J Valve
The Belimo Z3075Q-J is a high-performance 3/4" 3-way zone valve engineered for precise hydronic control in tight mechanical spaces. Part of the ZoneTight (QCV) series, this valve features a 4.6 Cv rating and a forged brass body designed for chilled or hot water applications, including up to 60% glycol solutions. For technicians, the snap-fit design is a critical advantage, allowing for tool-free actuator mounting that significantly reduces installation time in VAV reheat coils and fan coil units. Utilizing self-cleaning ball valve technology, the Z3075Q-J provides zero leakage and superior clog resistance compared to traditional paddle-style or globe zone valves. Its linear flow characteristic ensures stable diverting performance, while the chrome-plated brass ball and EPDM O-rings maintain long-term reliability under a 360 psi body pressure rating. This NPT female connection valve is the standard for contractors seeking energy-efficient zone control with an ultra-compact footprint.
Key Benefits:
- Quick-Connect Design: The snap-fit actuator interface allows for rapid, tool-less assembly and maintenance.
- Zero Leakage: High-integrity ball valve construction eliminates seat leakage that leads to energy loss in commercial HVAC systems.
- Clog Resistance: Self-cleaning ball technology prevents debris buildup, ensuring consistent 4.6 Cv flow.
- Compact Footprint: Ideal for restricted areas like fan coil units and baseboard radiation where traditional valves don't fit.
- Bi-directional Flow: Offers flexibility in piping configurations with a 3-way diverting pattern and high close-off pressure.
Common Questions:
What actuators are compatible with the Z3075Q-J?
This valve body is designed to pair with Belimo CQ series actuators (Non-fail safe) and CQK series (Electronic fail-safe). Always verify the control signal (On/Off, Proportional, or Floating Point) required for your specific controller.
Can this valve be installed in a vertical pipe?
Yes, the Z3075Q-J can be installed from an upright to a horizontal orientation. However, it should never be mounted with the actuator hanging below the valve body to prevent moisture damage to the electronics.
Is the Cv value adjustable on this model?
While the 4.6 Cv is the maximum rating, the flow can be field-adjusted using the end-stop clip on the paired ZoneTight actuator to meet specific design requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
