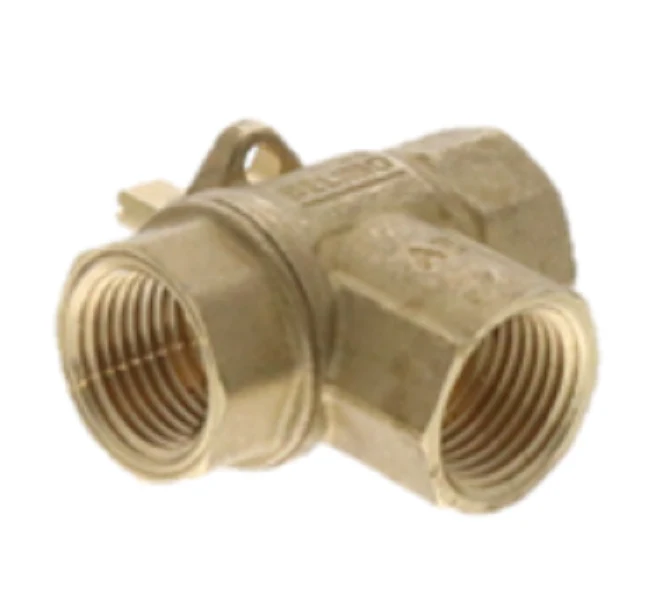

Belimo Z3050Q-E Valve
The Belimo Z3050Q-E Valve is an ultra-compact, high-performance solution designed for demanding hydronic zoning applications in commercial HVAC systems. This 1/2" 3-way zone valve features a 1.0 Cv rating and is engineered for precise control of chilled or hot water, including systems with up to 60% glycol. Utilizing ZoneTight QCV technology, the valve provides a zero-leakage ball valve design that eliminates energy loss common in traditional globe-style zone valves. With a 360 psi body pressure rating and a 40 psi close-off pressure, it ensures reliable shut-off and diversion in high-pressure loops.
The Z3050Q-E is built for the field, featuring a forged brass body and a chrome-plated brass ball with a self-cleaning design to prevent clogging from system debris. Contractors will appreciate the tool-free snap assembly, which allows for rapid mounting of CQ series actuators directly to the NPT female internal thread connections. Its linear flow characteristic and field-adjustable Cv capabilities make it an ideal choice for fan coil units, VAV reheat coils, and radiant panels where space is limited and efficiency is non-negotiable.
Key Benefits for the Contractor:- Zero Leakage Performance: The Belimo Z3050Q-E utilizes a ball valve seat that prevents seat lift and overflow, significantly improving system efficiency compared to paddle or plug valves.
- Maintenance-Free Reliability: Features an EPDM O-ring stem seal and specialized Teflon PTFE seats, reducing the need for service calls in hard-to-reach locations.
- Rapid Installation: The quick-connect valve (QCV) interface enables one-handed actuator attachment without additional linkages or tools.
- Flexible Application: Suitable for multi-directional flow, allowing for diverse piping configurations in both heating and cooling circuits.
- Space-Saving Footprint: With a compact installation height, this valve fits easily into tight attic spaces, plenum ceilings, and narrow baseboard enclosures.
Is the Belimo Z3050Q-E suitable for steam applications?
No, this model is specifically designed for chilled or hot water and glycol mixtures with a maximum media temperature of 212°F.
Can I adjust the flow rate after installation?
Yes, the field-adjustable Cv can be set at the actuator using an integrated mechanical stop to match specific system design requirements.
Does this valve require a specific mounting orientation?
The valve can be mounted in any orientation from upright to horizontal, but it should never be installed with the stem pointing downwards to prevent moisture from entering the actuator.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
