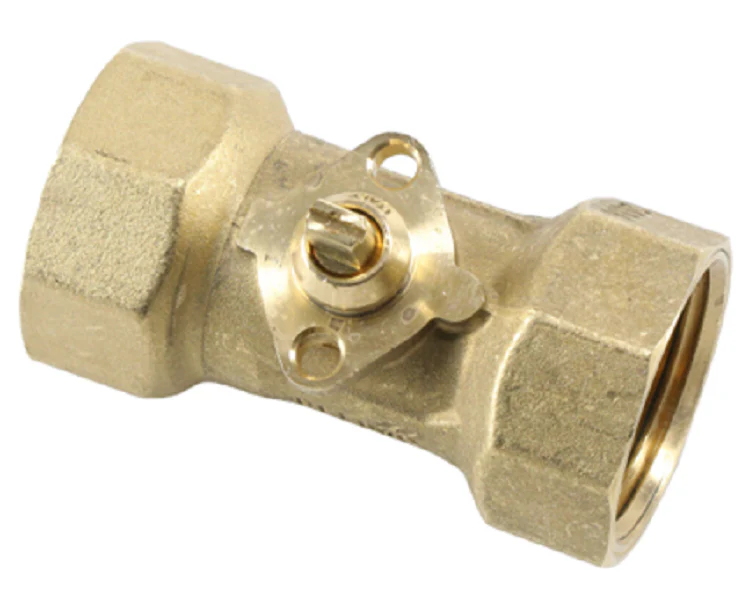

Belimo Z2100Q-K Valve Body
The Belimo Z2100Q-K is a high-performance 1" 2-way brass zone valve body designed for demanding commercial HVACR applications. Engineered as part of the ZoneTight QCV series, this valve body features a 8.2 Cv rating and is optimized for both chilled and hot water systems, supporting glycol concentrations up to 60%. The forged brass construction and chrome plated brass trim provide exceptional durability and resistance to scaling in closed-loop hydronic circuits. With its internal NPT thread connection, this valve ensures a secure, leak-free integration into 1-inch piping. The unit is designed for tool-free snap assembly with CQB and CQKB series actuators, significantly reducing field installation time. Operating with a 0% leakage rate and a 360 psi body pressure rating, the Z2100Q-K valve body maintains precise equal percentage flow characteristics for superior terminal equipment control in fan coil units, VAV reheat coils, and radiant panels.
Key Benefits for Technicians:- Field-Adjustable Flow: Integrated mechanical stops allow for precise Cv adjustment to meet specific branch requirements.
- Snap-Mount Design: Enables rapid, tool-free actuator mounting, minimizing labor costs and simplifying tight-space installations.
- Zero Leakage: High close-off pressure rating of 75 psi ensures the Belimo Z2100Q-K prevents ghost flows and energy waste.
- Versatile Compatibility: Seamlessly pairs with both non-fail safe and electronic fail-safe Belimo actuators.
- What is the maximum fluid temperature for this valve? This brass zone valve body is rated for fluid temperatures ranging from 36°F to 212°F.
- Can this valve be installed in any orientation? It can be mounted from upright to horizontal; however, avoid installing with the stem pointing downwards to prevent moisture damage to the actuator.
- Is this valve pressure independent? No, the Z2100Q-K is a pressure-dependent valve body that relies on system balancing for flow control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $54.70
-65%$54.70
$19.14Belimo Z2100Q-K Valve Body
The Belimo Z2100Q-K is a high-performance 1" 2-way brass zone valve body designed for demanding commercial HVACR applications. Engineered as part of the ZoneTight QCV series, this valve body features a 8.2 Cv rating and is optimized for both chilled and hot water systems, supporting glycol concentrations up to 60%. The forged brass construction and chrome plated brass trim provide exceptional durability and resistance to scaling in closed-loop hydronic circuits. With its internal NPT thread connection, this valve ensures a secure, leak-free integration into 1-inch piping. The unit is designed for tool-free snap assembly with CQB and CQKB series actuators, significantly reducing field installation time. Operating with a 0% leakage rate and a 360 psi body pressure rating, the Z2100Q-K valve body maintains precise equal percentage flow characteristics for superior terminal equipment control in fan coil units, VAV reheat coils, and radiant panels.
Key Benefits for Technicians:- Field-Adjustable Flow: Integrated mechanical stops allow for precise Cv adjustment to meet specific branch requirements.
- Snap-Mount Design: Enables rapid, tool-free actuator mounting, minimizing labor costs and simplifying tight-space installations.
- Zero Leakage: High close-off pressure rating of 75 psi ensures the Belimo Z2100Q-K prevents ghost flows and energy waste.
- Versatile Compatibility: Seamlessly pairs with both non-fail safe and electronic fail-safe Belimo actuators.
- What is the maximum fluid temperature for this valve? This brass zone valve body is rated for fluid temperatures ranging from 36°F to 212°F.
- Can this valve be installed in any orientation? It can be mounted from upright to horizontal; however, avoid installing with the stem pointing downwards to prevent moisture damage to the actuator.
- Is this valve pressure independent? No, the Z2100Q-K is a pressure-dependent valve body that relies on system balancing for flow control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
