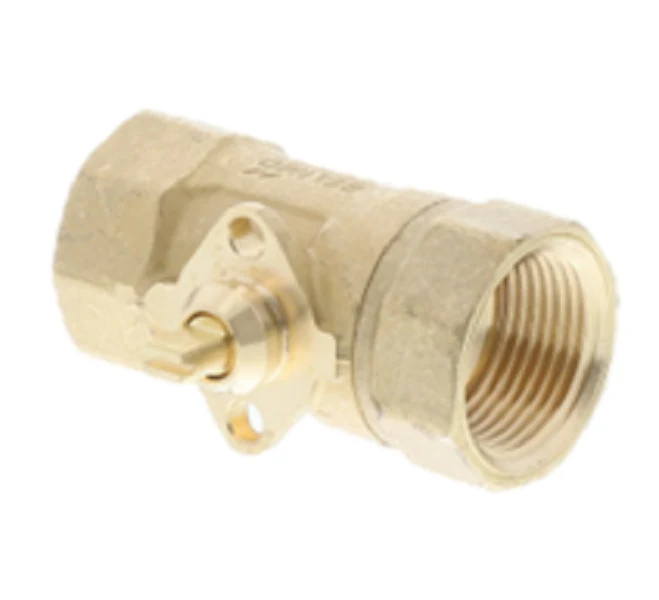

Belimo Z2075Q-K Valve
The Belimo Z2075Q-K Valve is a high-performance 3/4" ZoneTight QCV (Quick Compact Valve) designed for precise control in commercial HVACR applications. Engineered with a 2-way NPT female connection and a 9.8 Cv rating, this valve utilizes characterized ball valve technology to deliver equal percentage flow, ensuring stable hydronic control in unit ventilators, fan coil units, and VAV reheat coils. The forged brass body and chrome-plated brass ball provide a rugged construction capable of handling body pressures up to 360 psi and a 75 psi close-off pressure. Its zero-leakage performance prevents circulation losses, while the self-cleaning ball design minimizes clogging risks from system debris. Designed for toolless actuator mounting, this valve integrates seamlessly with CQ series actuators, supporting a field-adjustable maximum flow to meet specific design requirements. This maintenance-free component is suitable for chilled or hot water systems with up to 60% glycol, operating reliably within a fluid temperature range of 36°F to 212°F.
Key Benefits
- Zero Leakage: High close-off capability ensures 0% leakage, eliminating energy loss in zoning applications.
- Equal Percentage Flow: Provides superior control stability compared to standard globe valves.
- Toolless Assembly: Snap-on actuator interface allows for rapid installation and commissioning without additional linkages.
- Compact Footprint: Specifically engineered for space-restricted areas like fin tube casings and radiant panels.
- Field Adjustable Cv: Easily set maximum flow rates via the actuator to match hydronic balancing specs.
Common Questions
- Which actuators are compatible with the Z2075Q-K? This valve body is designed to work with Belimo CQB and CQKB series actuators, including on/off, floating point, and modulating 2-10VDC models.
- Can this valve be installed in any orientation? It can be installed from upright to horizontal. Do not install the valve with the stem pointing downwards as this can lead to moisture accumulation in the actuator.
- Is a strainer required for operation? While the ball design is self-cleaning and clog-resistant, the installation of a suitable strainer is recommended to protect the internal seals from large particle debris.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
