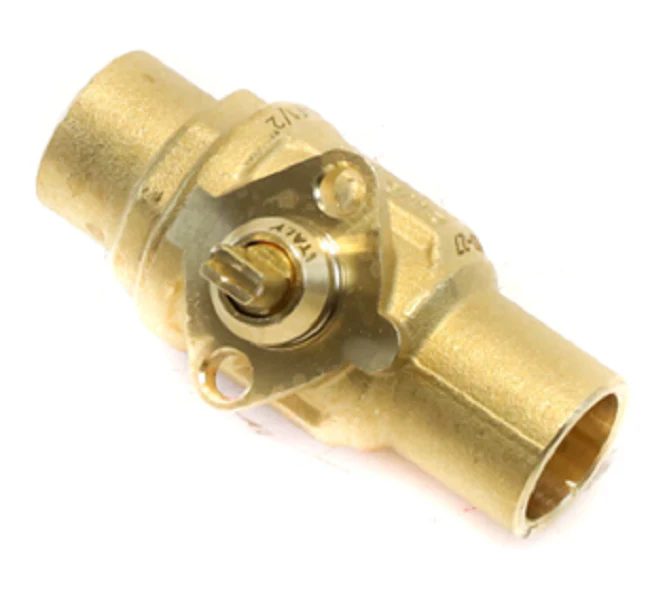

Belimo Z2050QS-F Valve
The Belimo Z2050QS-F Valve is a high-performance 1/2 inch 2-way zone valve engineered for precision fluid control in commercial HVAC systems. Featuring a 1.4 Cv flow coefficient, this forged brass body is optimized for reheat coils, fan units, and baseboard applications where reliable close-off is critical. The sweat connection design ensures a robust, leak-free union when soldered into copper piping, and the chrome plated brass ball technology provides a consistent equal percentage flow characteristic. As a ZoneTight zone valve, it is rated for a body pressure of 360 psi and can handle fluid temperatures up to 212°F, making it a staple for both chilled and hot water systems with up to 60% glycol. This maintenance-free component allows for tool-free actuator mounting, significantly reducing labor time during field installation or retrofits. For contractors requiring a dependable compact zone valve that eliminates energy loss through its zero-leakage design, the Z2050QS-F delivers industrial-grade durability in a space-saving footprint.
Key Benefits- Zero leakage performance prevents energy waste and ensures precise temperature control in hydronic circuits.
- Compact footprint allows for easy installation in tight VAV boxes, fan coils, and baseboard enclosures.
- Field-adjustable flow capabilities via a mechanical stop clip allow for post-installation Cv tuning to meet design specs.
- Tool-free assembly enables rapid actuator mounting and simplifies service in the field.
- High close-off rating (75 psi) ensures stable operation against high system differential pressures.
Can the Z2050QS-F be used in steam applications?
No, this valve is specifically designed for chilled and hot water systems. It is rated for fluid temperatures up to 212°F but is not suitable for steam service.
What is the proper installation orientation for this valve?
The valve must be installed with the stem in an upright to horizontal position. It should never be mounted with the stem pointing downward, as this can lead to sediment accumulation and premature seal failure.
Are these valves compatible with any Belimo actuator?
The Z2050QS-F is designed for use with the Belimo CQ and CQK series actuators. These "snap-on" actuators do not require tools or additional linkages for mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
