Belimo WGVL+RVB24-MFT Actuator

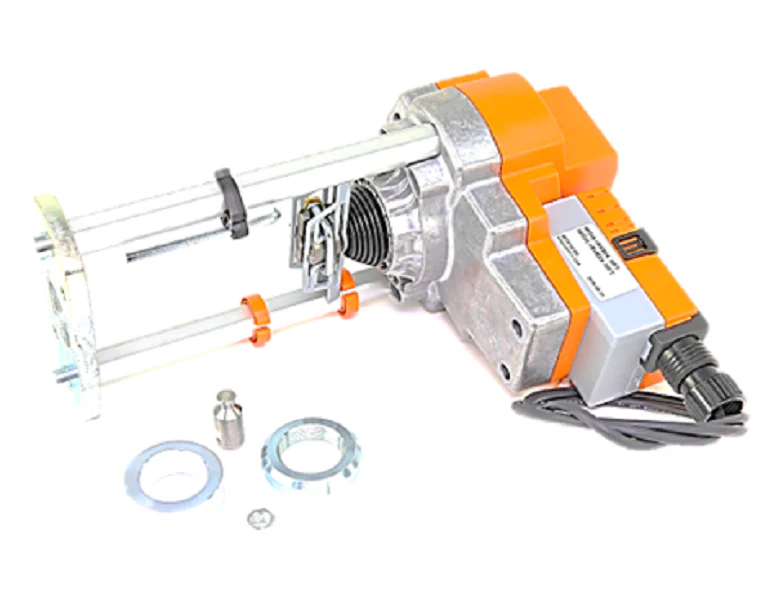

The Belimo WGVL+RVB24-MFT Actuator is a high-performance direct-coupled globe valve linkage and non-spring return actuator assembly specifically engineered for HVAC retrofit applications. Delivering a robust 1011 lbf (4500 N) of linear force, this unit is designed to automate 2-inch to 6-inch Warren Controls globe valves and compatible Belimo G6/G7 series valves. Utilizing Multi-Function Technology (MFT), the RVB24-MFT actuator provides field-programmable control signals—including modulating 2-10 VDC, 4-20 mA, and on/off or floating point control—ensuring seamless integration with any DDC system. The integrated WGVL linkage features a cast aluminum frame and a centering device to maintain precise stem alignment, while the 2-inch stroke length accommodates various valve travel requirements. This maintenance-free, 24V NSR actuator includes a manual override hex crank and a NEMA 2/IP54 rated housing, making it a reliable solution for chilled water, hot water, and steam service in demanding commercial environments.
Key Benefits- 1011 lbf Linear Force: Provides high close-off pressure capabilities for large-scale globe valve assemblies.
- Multi-Function Technology (MFT): Allows for field-programmable input and feedback signals to match specific system requirements.
- Universal Retrofit Compatibility: Specifically designed to interface with Warren Controls globe valve bodies (Types 20, 22, 23, 30, and 32).
- Non-Spring Return Operation: Maintains the last position during power loss, ideal for steady-state control in critical loops.
- Precision Alignment: The WGVL linkage includes a centering device and locking coupler to prevent stem slippage and ensure long-term operational accuracy.
Is the RVB24-MFT compatible with 4-20 mA control signals?
Yes, the Multi-Function Technology allows the actuator to accept 4-20 mA signals, though a 500-ohm resistor (ZG-R01) may be required depending on the controller configuration.
Can this actuator be used on steam valves?
The Belimo WGVL+RVB24-MFT is rated for use with chilled water, hot water, and steam service, provided the media temperatures remain within the valve body's specified limits.
Does the linkage require field assembly?
The assembly typically comes with the actuator with linkage pre-mounted or as a kit containing all necessary hardware (SS and nickel-plated steel) for installation onto the valve body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $822.70
-65%$822.70
$287.94Belimo WGVL+RVB24-MFT Actuator
The Belimo WGVL+RVB24-MFT Actuator is a high-performance direct-coupled globe valve linkage and non-spring return actuator assembly specifically engineered for HVAC retrofit applications. Delivering a robust 1011 lbf (4500 N) of linear force, this unit is designed to automate 2-inch to 6-inch Warren Controls globe valves and compatible Belimo G6/G7 series valves. Utilizing Multi-Function Technology (MFT), the RVB24-MFT actuator provides field-programmable control signals—including modulating 2-10 VDC, 4-20 mA, and on/off or floating point control—ensuring seamless integration with any DDC system. The integrated WGVL linkage features a cast aluminum frame and a centering device to maintain precise stem alignment, while the 2-inch stroke length accommodates various valve travel requirements. This maintenance-free, 24V NSR actuator includes a manual override hex crank and a NEMA 2/IP54 rated housing, making it a reliable solution for chilled water, hot water, and steam service in demanding commercial environments.
Key Benefits- 1011 lbf Linear Force: Provides high close-off pressure capabilities for large-scale globe valve assemblies.
- Multi-Function Technology (MFT): Allows for field-programmable input and feedback signals to match specific system requirements.
- Universal Retrofit Compatibility: Specifically designed to interface with Warren Controls globe valve bodies (Types 20, 22, 23, 30, and 32).
- Non-Spring Return Operation: Maintains the last position during power loss, ideal for steady-state control in critical loops.
- Precision Alignment: The WGVL linkage includes a centering device and locking coupler to prevent stem slippage and ensure long-term operational accuracy.
Is the RVB24-MFT compatible with 4-20 mA control signals?
Yes, the Multi-Function Technology allows the actuator to accept 4-20 mA signals, though a 500-ohm resistor (ZG-R01) may be required depending on the controller configuration.
Can this actuator be used on steam valves?
The Belimo WGVL+RVB24-MFT is rated for use with chilled water, hot water, and steam service, provided the media temperatures remain within the valve body's specified limits.
Does the linkage require field assembly?
The assembly typically comes with the actuator with linkage pre-mounted or as a kit containing all necessary hardware (SS and nickel-plated steel) for installation onto the valve body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
