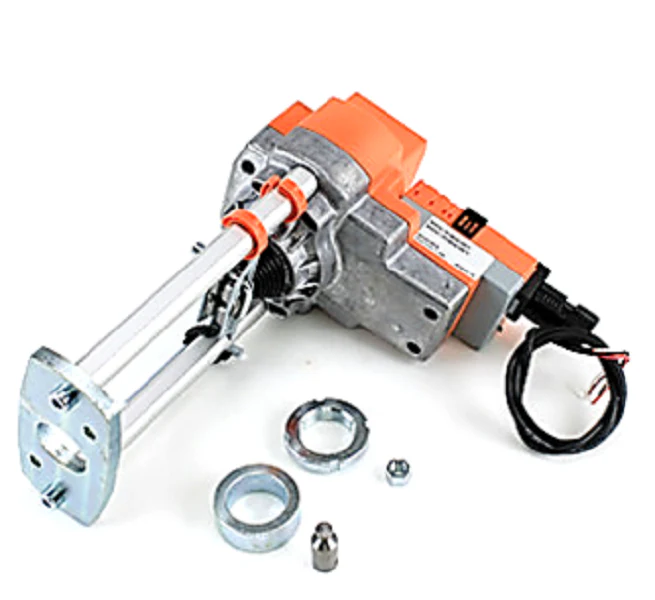

Belimo WGVL+EVB24-MFT Valve Linkage
The Belimo WGVL+EVB24-MFT Valve Linkage and multi-function technology actuator assembly provides a high-force solution for globe valve automation in complex HVAC systems. Delivering 562 lbf (2500 N) of linear force, this non-spring return actuator is designed for precise control on 2-way and 3-way globe valves. Operating on 24VAC/DC, the EVB24-MFT supports 4-20mA control signals (500 Ohm impedance), PWM signals (1500 Ohm impedance), floating point, and on/off configurations. This flexibility allows for seamless integration into Building Automation Systems (BAS) requiring modulating globe valve control. The WGVL linkage ensures a robust mechanical connection, maintaining stroke accuracy across various valve body sizes. Built for industrial-grade durability, this HVAC valve actuator assembly handles high differential pressures while providing reliable feedback for system monitoring and energy management optimizations.
Key Benefits:
- Universal Compatibility: Supports a wide range of input signals including 2-10VDC, 4-20mA, and PWM for maximum versatility.
- High Force Output: Provides 562 lbf of seating force to ensure positive shut-off in high-pressure applications.
- Programmable Operation: Multi-Function Technology (MFT) allows for field-adjustable running times and control types.
- Efficient Power Consumption: Optimized for low energy draw during operation and holding, reducing total transformer load.
- Durable Construction: The WGVL linkage is engineered to withstand high ambient temperatures and repetitive cycling in mechanical rooms.
Common Questions:
Can I field-configure the control signal on the EVB24-MFT?
Yes, the Multi-Function Technology allows the actuator to be set for different input signals and feedback responses using the Belimo PC Tool or ZTH US handheld tool.
What is the manual override procedure for this linkage?
The actuator features a manual override crank that allows for positioning the valve during power loss or commissioning without damaging the internal gearing.
Is this assembly suitable for steam applications?
The assembly is rated for globe valves in water and low-pressure steam applications; however, always verify the specific valve body temperature rating matches your system requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $742.99
-65%$742.99
$260.05Belimo WGVL+EVB24-MFT Valve Linkage
