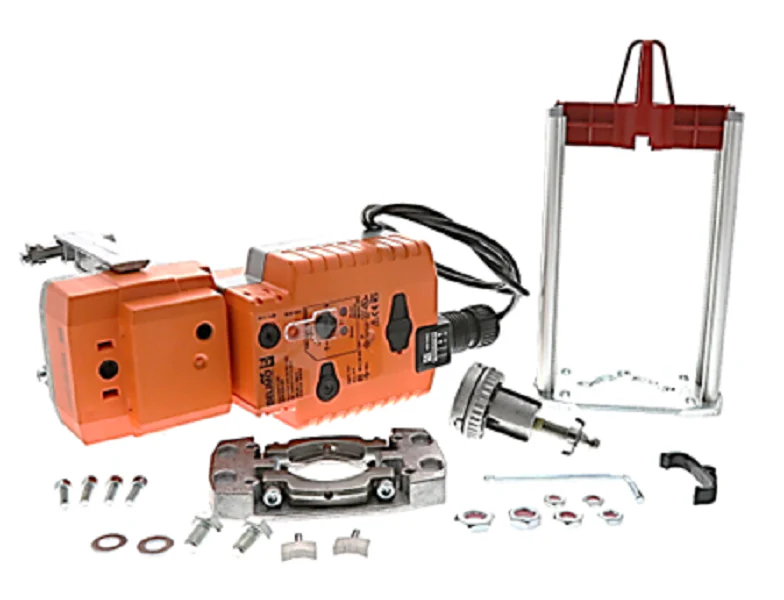

Belimo UGVL+SVKX24-SR Actuator
For high-performance control in HVAC and steam systems, the Belimo UGVL+SVKX24-SR Actuator provides a rugged, field-proven solution for direct-coupled globe valve retrofit applications. This assembly features the UGVL universal linkage paired with an electronic fail-safe actuator, delivering a linear force of 337 lbf to ensure tight close-off in both 2-way and 3-way valve configurations. Technical professionals value the SVK series for its brushless DC motor technology, which provides precise modulating control via a 2-10 VDC signal while minimizing power consumption to just 2W in holding mode.
Designed for contractors upgrading legacy systems, this unit is compatible with various valve bodies from 1/2" to 2" and offers a stroke of up to 20 mm. The proportional control and integrated linear valve linkage eliminate the need for complex field calibrations, as the IP54/NEMA 2 rated housing includes an illuminated adaptation button for automatic stroke scaling. Whether managing chilled water, hot water, or steam, the SVKX24-SR ensures reliable operation and a defined safety position during power loss, outperforming traditional spring-return models in flexibility and service life.
Key Benefits- Universal Compatibility: Specifically engineered as a high-torque retrofit valve linkage for 1/2" to 2" globe valves from major manufacturers.
- Electronic Fail-Safe: Efficiently returns to a pre-set safety position in under 35 seconds using advanced capacitor technology.
- Ease of Installation: Includes an 18 GA plenum-rated cable and 1/2" conduit connector for rapid electrical integration.
- Maintenance-Free Design: Features electronic overload protection throughout the full stroke, preventing motor burnout in stall conditions.
- Visual Diagnostics: Integrated LED status indicators and a mechanical position pointer allow for quick functional verification in the field.
Is the Belimo UGVL+SVKX24-SR compatible with 4-20 mA control signals?
Yes, the actuator can accept a 4-20 mA signal with the addition of a 500 Ω field-installed resistor across the input terminals.
What is the maximum media temperature this linkage can handle?
The UGVL linkage is rated for steam applications up to 388°F (170°C) and chilled/hot water systems from 20°F to 250°F, depending on the valve body specifications.
Can I manually operate the valve if power is lost?
The unit is equipped with a manual override (4 mm hex crank) to allow technicians to position the valve manually during commissioning or power failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
